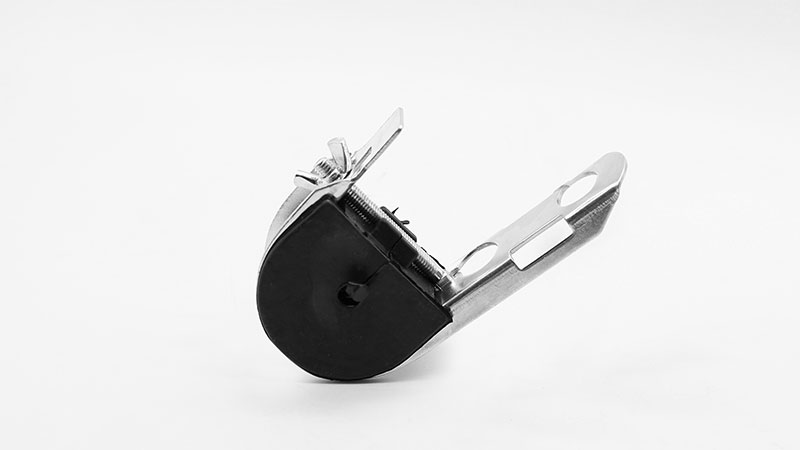

HC Optical Fiber Suspension Clamp

Hook clamps are designed to provide a suspension  for 10 to 20 mmaerial ADSS cables at intermediate  poles on cable routes with

angle <20 on access networks (spans up to 100 m). The suspension clamp for ADSS cable consists of a galvanized steel J hook,

a neoprene sleeve and  tightening screw. The clamp may be installed on poles using either a pig tail bolt or 2 pole bands.

Model	Cable Diameter(mm)	Break Load(kN)
HC-5-8	5-8	4
HC-8-12	8-12	4
HC-10-15	10-15	4
HC-15-20	15-20	4
