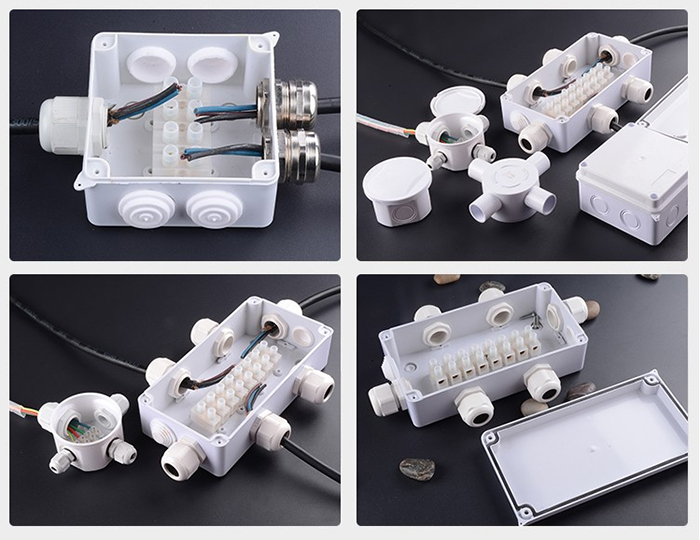

Name: RA Series Plastic Junction Box
Code:KW-RA
Body Material:ABS
Stopper Material:PVC
Description
The enclosure include Cover,Base,Sealing and Screw;
3.Operating temperature:-20°C to 85°C;
4.Protection Class: IP65;
5.Color: Light grey or according your requirement;
7.Most of products can be modifications, such as drilling holes, adding and changing PCB pillars;
8.Indoor and outdoor installations,rapid Deployment Installations,corrosive environments & hotspot applications;
Technical Data
|
Code |
IP |
Hole Qty |
Hole Size (mm) |
G.W. (KGS) |
N.W. (KGS) |
CTN Size (cm) |
|
RA 50*50 |
55 |
4 |
25 |
13.5 |
12.3 |
46*38*51 |
|
RA 80*50 |
55 |
4 |
25 |
14.7 |
13.4 |
53*35*62 |
|
RA 85*85*50 |
55 |
7 |
25 |
17.2 |
16 |
53*41*53 |
|
RA 100*100*70 |
65 |
7 |
25 |
14.9 |
13.5 |
62*49*35 |
|
RA 150*110*70 |
65 |
10 |
25 |
15.1 |
13.8 |
67*33*46.5 |
|
RA 150*150*70 |
65 |
8 |
25 |
16.3 |
15 |
84.5*34*45 |
|
RA 200*100*70 |
65 |
8 |
25 |
16.6 |
15.3 |
61*46*42 |
|
RA 200*155*80 |
65 |
10 |
36 |
14.5 |
13.2 |
69.5*43.5*41 |
|
RA 200*200*80 |
65 |
12 |
36 |
18 |
16.6 |
90*46*40.5 |
|
RA 255*200*80 |
65 |
12 |
36 |
21.9 |
20.1 |
55*45*80 |
|
RA 255*200*120 |
65 |
12 |
36 |
21.9 |
20.1 |
64*55*62 |
|
RA 300*250*120 |
65 |
12 |
36 |
20.3 |
18.4 |
61.5*55.5*63 |
|
RA 400*350*120 |
65 |
16 |
36 |
15 |
13.3 |
74.5*42.5*61.5 |
