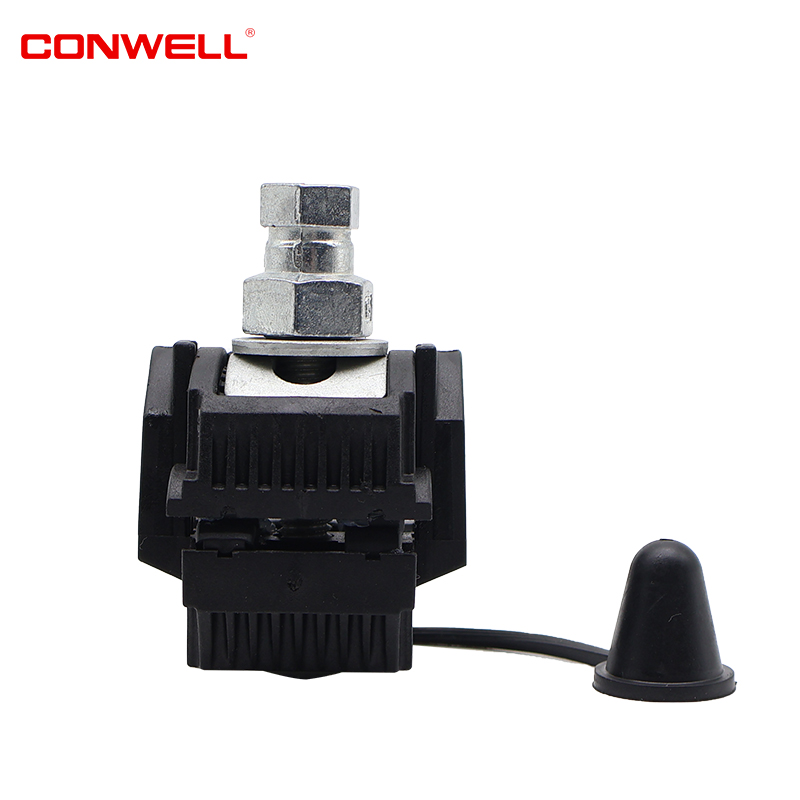

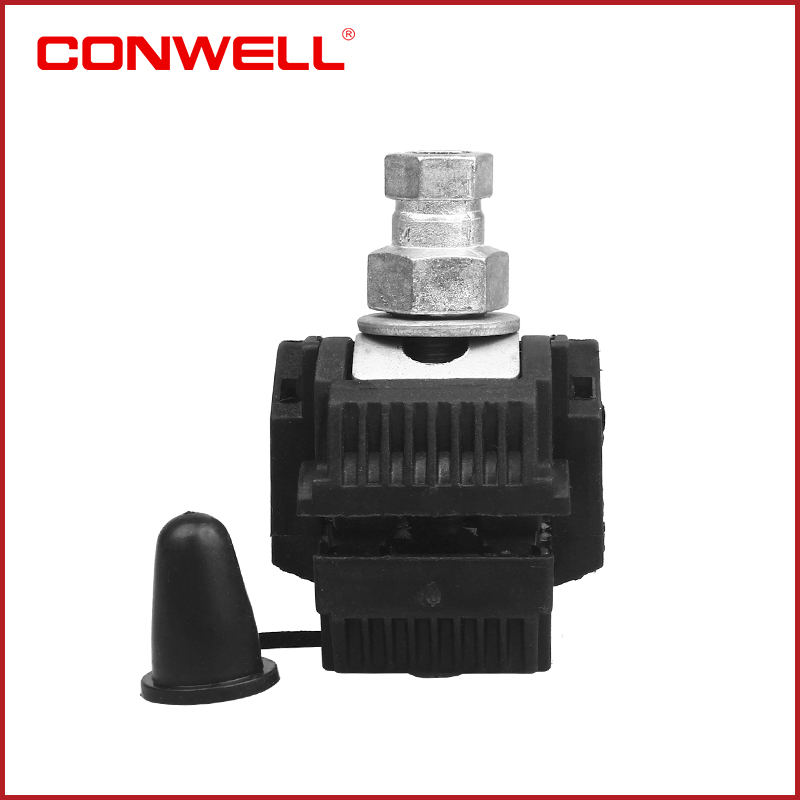

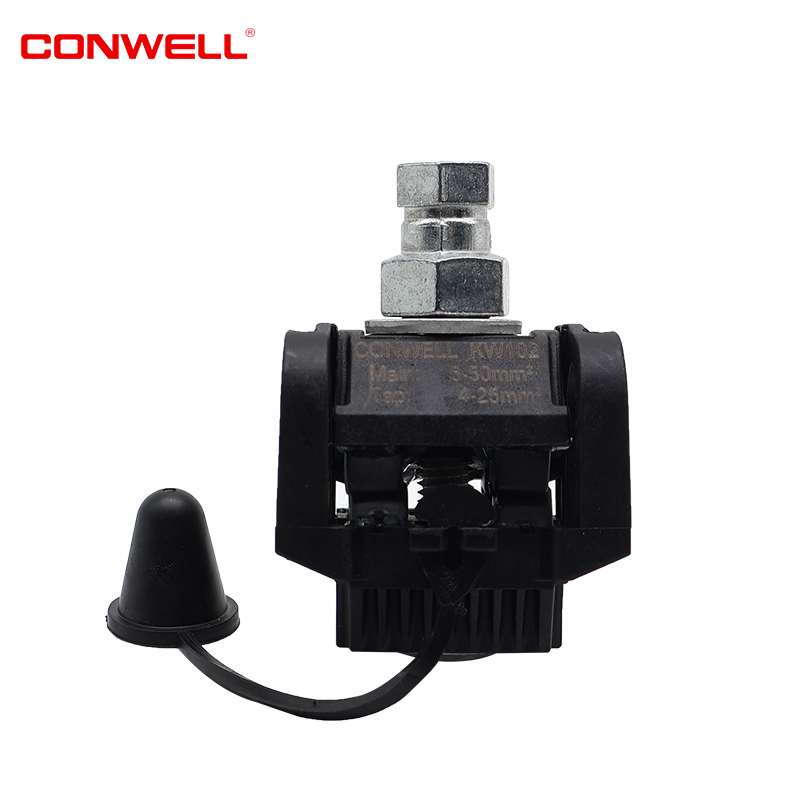

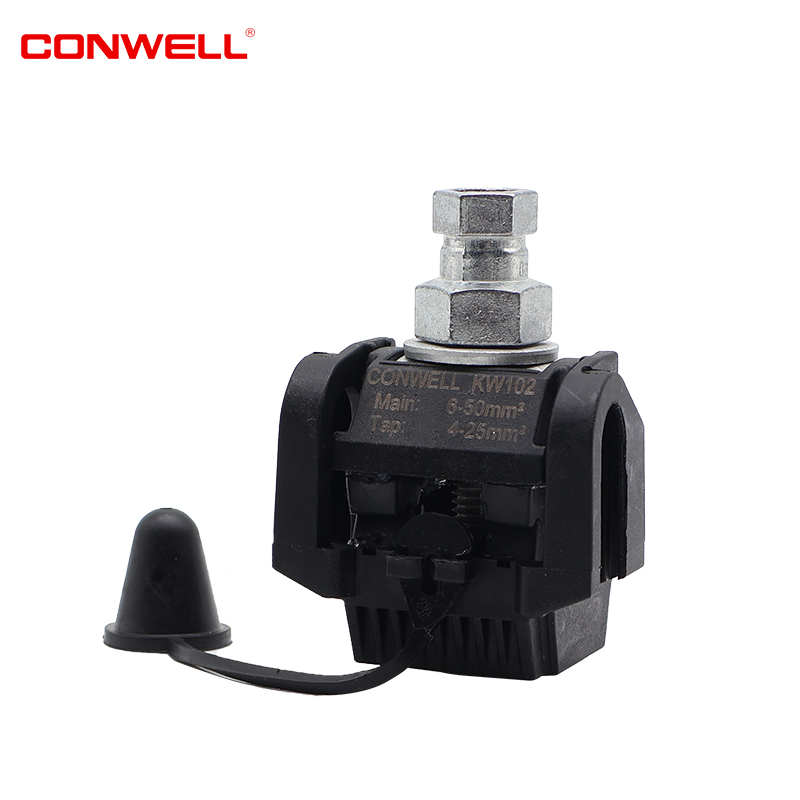

Insulation Piercing Connector

Code:KW102
Cable Size: 6-54mm² to 4-50mm²

Description:The KW102 is used for all connections of insulated aluminum and copper main and branch conductors up to 1KV. The Design enables hot line installation.Equipped with shear head screw

Technical specification

Dimensions

Main Cable Line:

6-54mm²

Branch Cable Line:

4-50mm²

Norminal Current:

102A

Piercing Depth:

2.5-3.5mm

Weight:

110g

Features

Bolt:

M8*60

Mechnical

Tightening Torque:

15Nm

Normal Package

Inner Package: 10pieces in inner bag, 40pieces in inner box

PCS/CTN: 200pcs

Carton Size: 45.5*36*21cm

G.W./N.W.: 23/22KGS

Specific packaging can be made to order.
