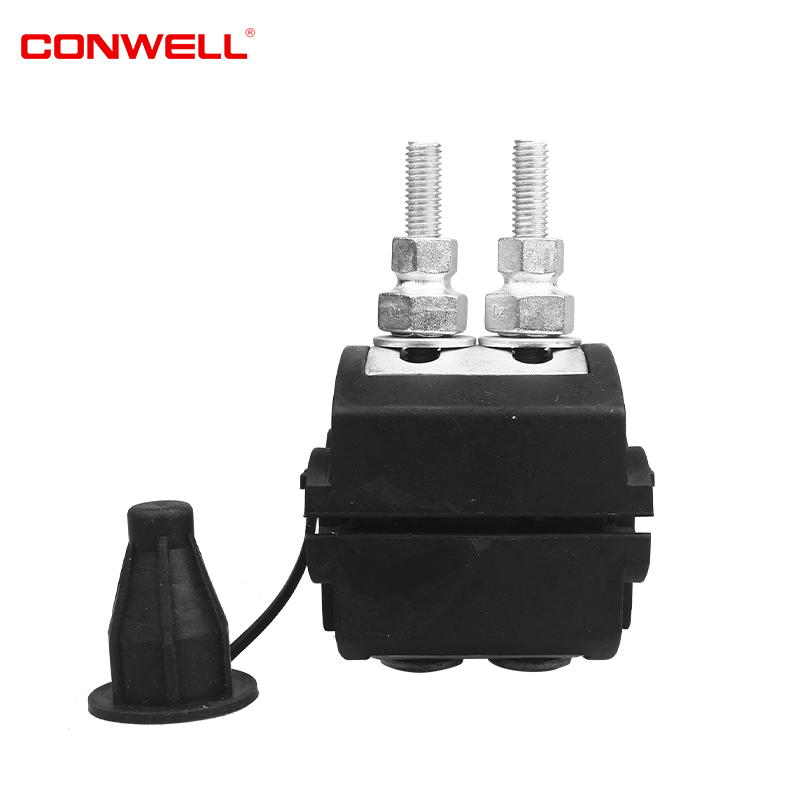

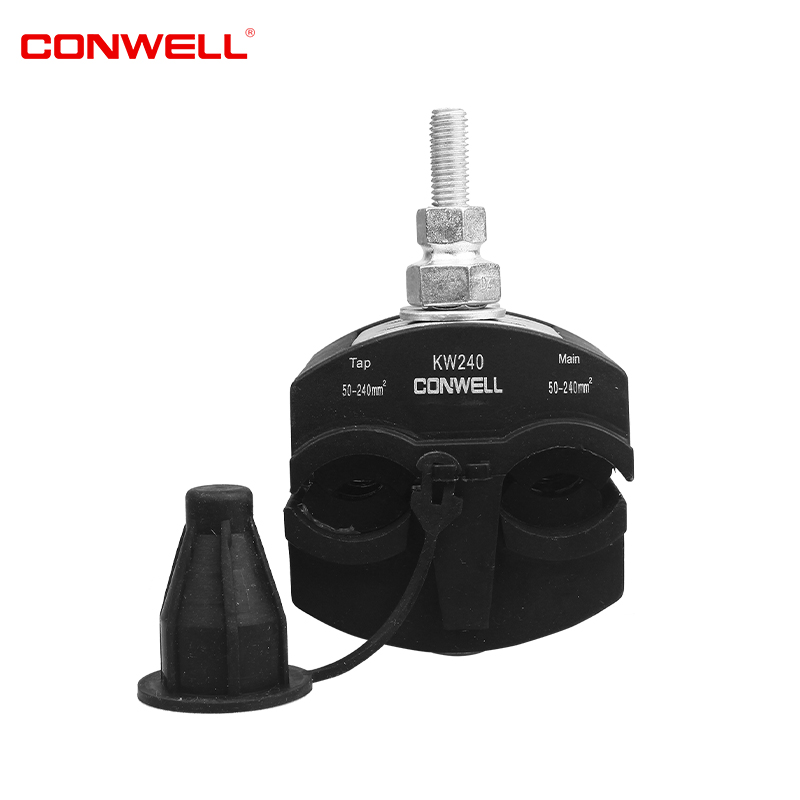

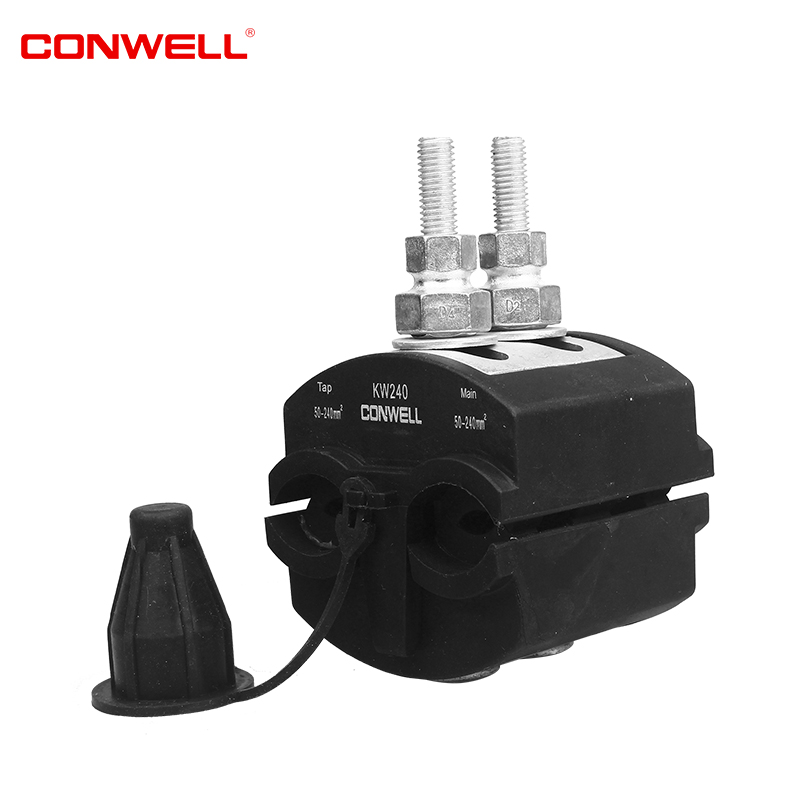

Insulation Piercing Connector

Code:KW240
Cable Size:95-240mm² to 95-240mm²

Description:The KW240 is used for all connections of insulated aluminum and copper main and branch conductors up to 1KV. The Design enables hot line installation.Equipped with shear head screw

Technical specification

Dimensions

Main Cable Line:

95-240mm²

Branch Cable Line:

95-240mm²

Norminal Current:

476A

Piercing Depth:

4-5mm

Weight:

485g

Features

Bolt:

M8*110

Mechanical

Tightening Torque:

32Nm

Normal Package

Inner Package: 8pieces in inner box

PCS/CTN: 40pcs

Carton Size: 45.5*36*21cm

G.W./N.W.: 20.5/19.5KGS

Specific packaging can be made to order.
