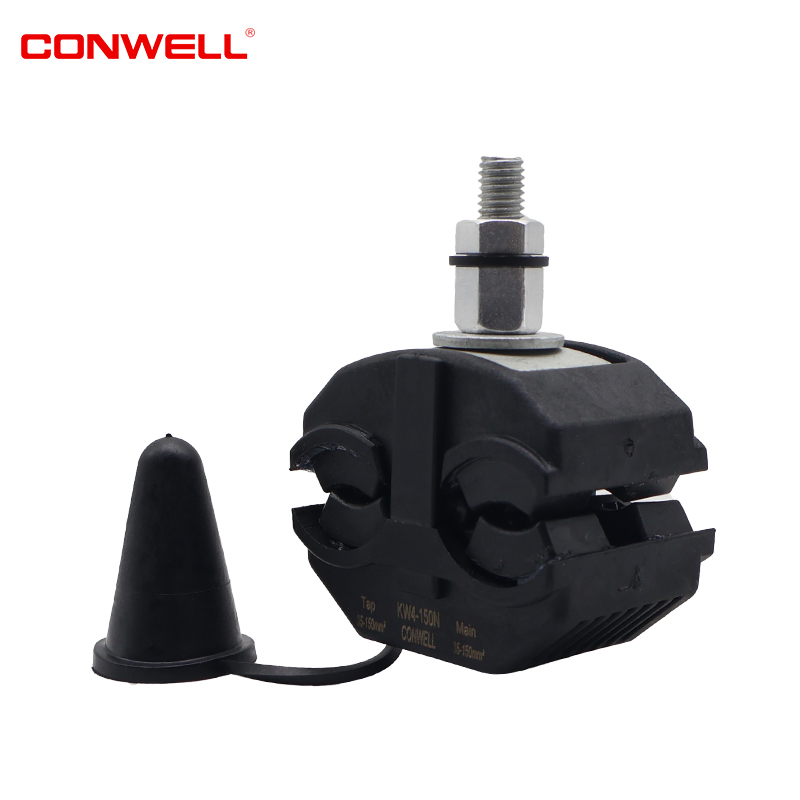

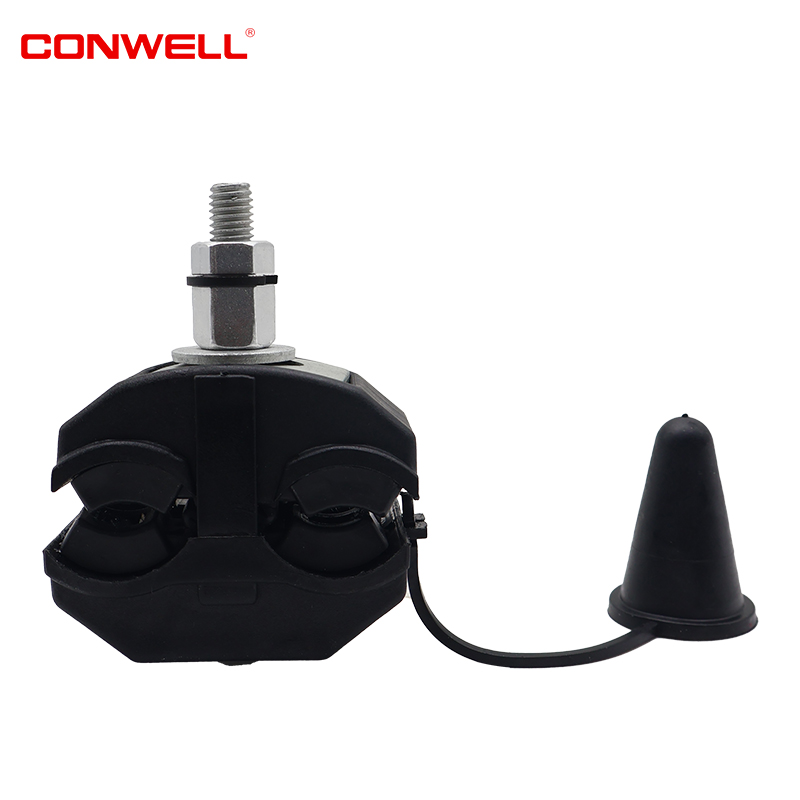

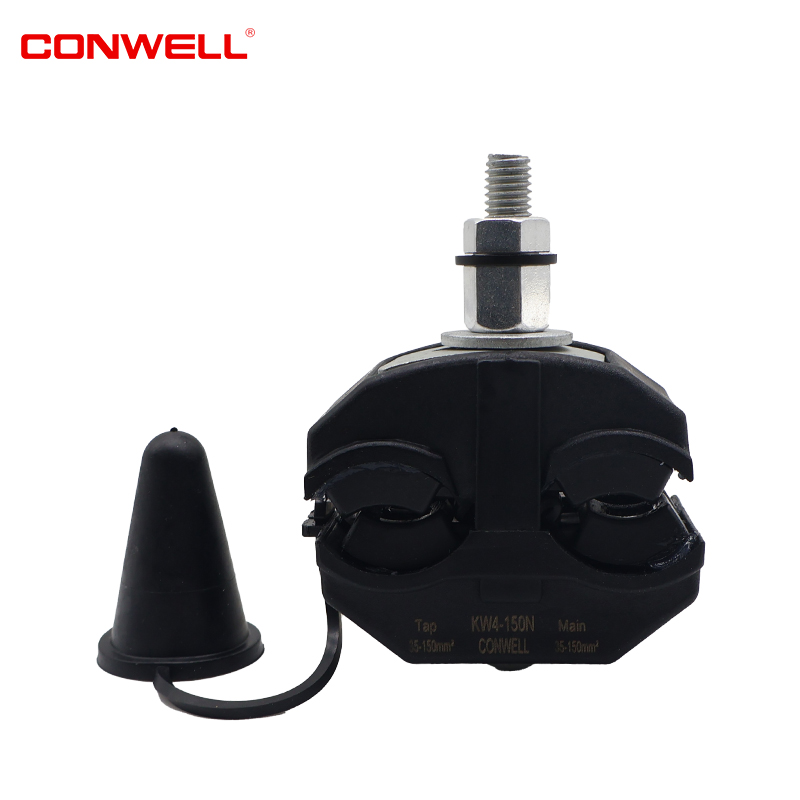

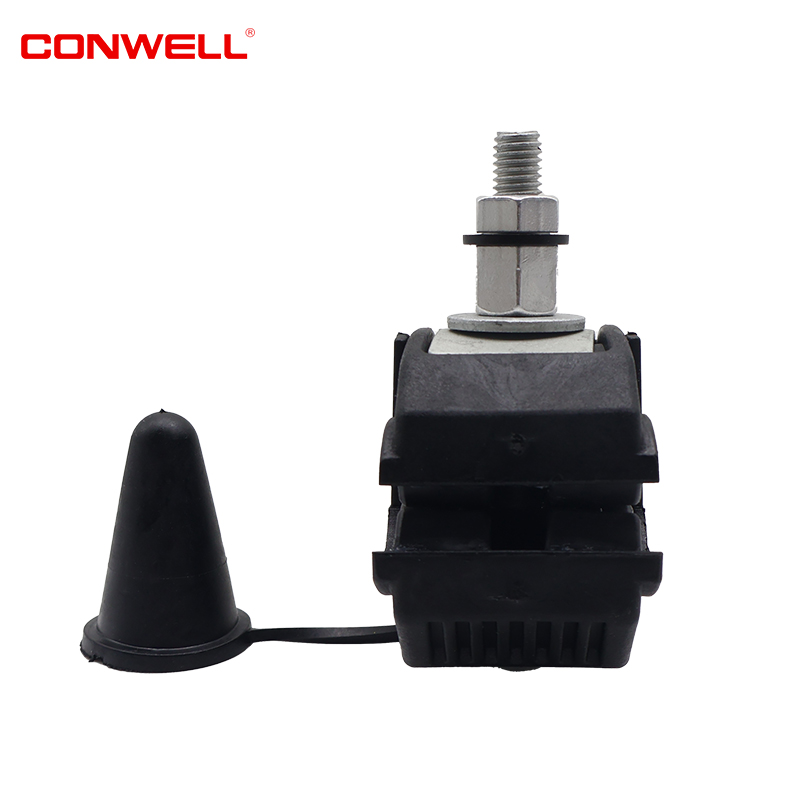

Insulation Piercing Connector

Code:KW4-150
Cable Size:35-150mm2 to 35-150mm2

Description:The KW4-150 is used for all connections of insulated aluminum and copper main and branch conductors up to 1KV. The Design enables hot line installation.Equipped with shear head screw

Technical specification

Dimensions

Main Cable Line:

35-150mm²

Branch Cable Line:

35-150mm²

Norminal Current:

342A

Piercing Depth:

3-4mm

Weight:

225g

Features

Bolt:

M8*80

Mechnical

Tightening Torque:

26Nm

Normal Package

Inner Package: 14pieces in inner box

PCS/CTN: 140pcs

Carton Size: 65*30*20cm

G.W./N.W.: 32.5/31.5KGS

Specific packaging can be made to order.
