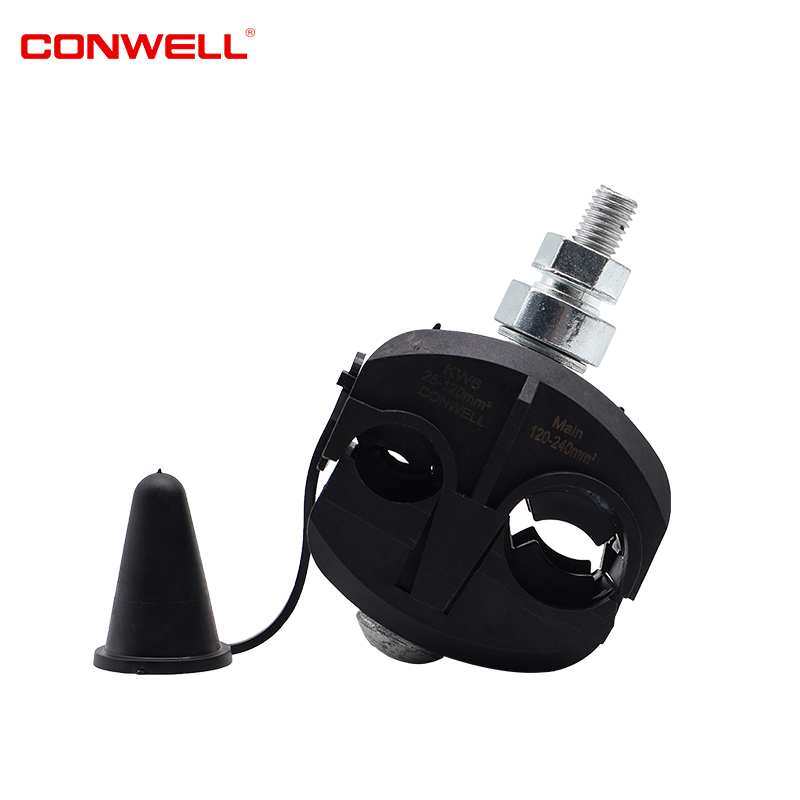

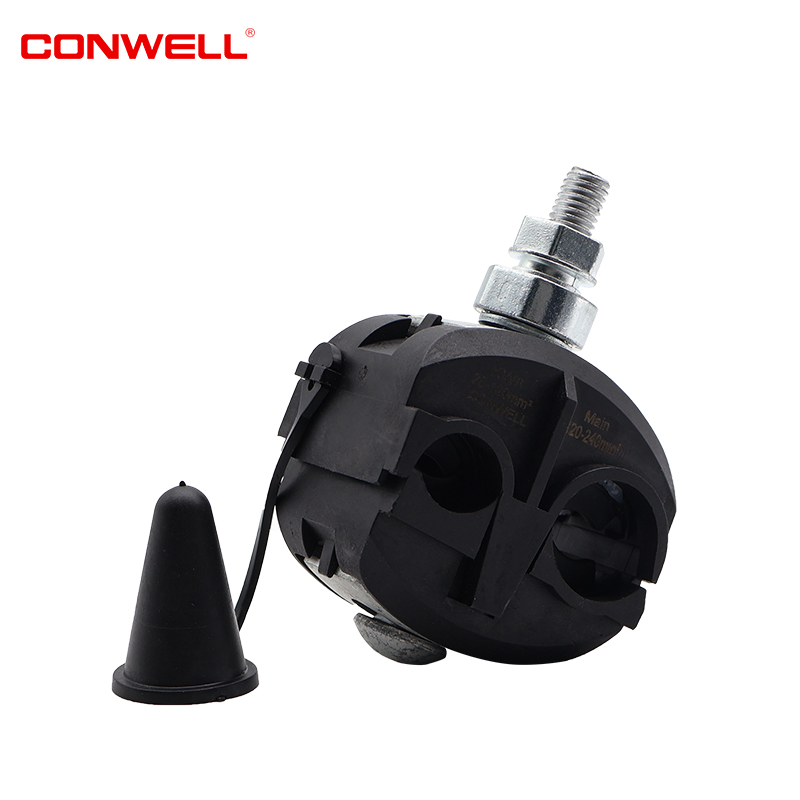

Insulation Piercing Connector

Code:KW6
Cable Size:120-240/25-120mm²

Description:The KW3-95 is used for all connections of insulated aluminum and copper main and branch conductors up to 1KV. The Design enables hot line installation.Equipped with shear head screw

Technical specification

Dimensions

Main Cable Line:

120-240mm²

Branch Cable Line:

25-120mm²

Norminal Current:

299A

Piercing Depth:

3-4mm

Weight:

276g

Features

Bolt:

M10*100

Mechnical

Tightening Torque:

35Nm

Normal Package

Inner Package: 10pieces in inner box

PCS/CTN: 50pcs

Carton Size: 45.5*36*21cm

G.W./N.W.: 15/14KGS

Specific packaging can be made to order.
