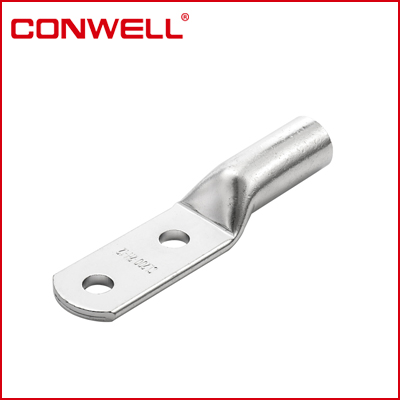

Mechanical Lugs and Connectors

Name:Mechanical Lugs and Connectors
Code:AMB
Cable Size: 25-400mm²

Description:

1. Wide application range.

2. Compact design,requires little installation space.

3. Can be used with almost every type of conductor and material.

4.Torque-controlled shear-head bolts guarantee a good electrical contact.

5.Easy installation with standard socket spanner.

Characteristics:

1. Total cross-section: 25-400 mm

2.Pr-engineered design for perfect fit in medium voltage cable accessories up to 42 kV.

3.Lugs are suitable for out door and indoor applications.

4.Connector and lug bodies are made of a high-tensile,tinplate aluminium alloy.

5.Connection between copper and aluminium conductors is possible.

6.Also available without wire stop,part number with "U".

Technical Data:

Nominal Cross section (mm²)

Code

Dimension (mm)

Bolt Quantity

25-95

AMB25/95

24

65

13

2

35-150

AMB35/150

28

80

16

2

95-240

AMB95/240

33

125

19

4

120-300

AMB120/300

37

140

24

4

185-400

AMB185/400

42

170

24

6
