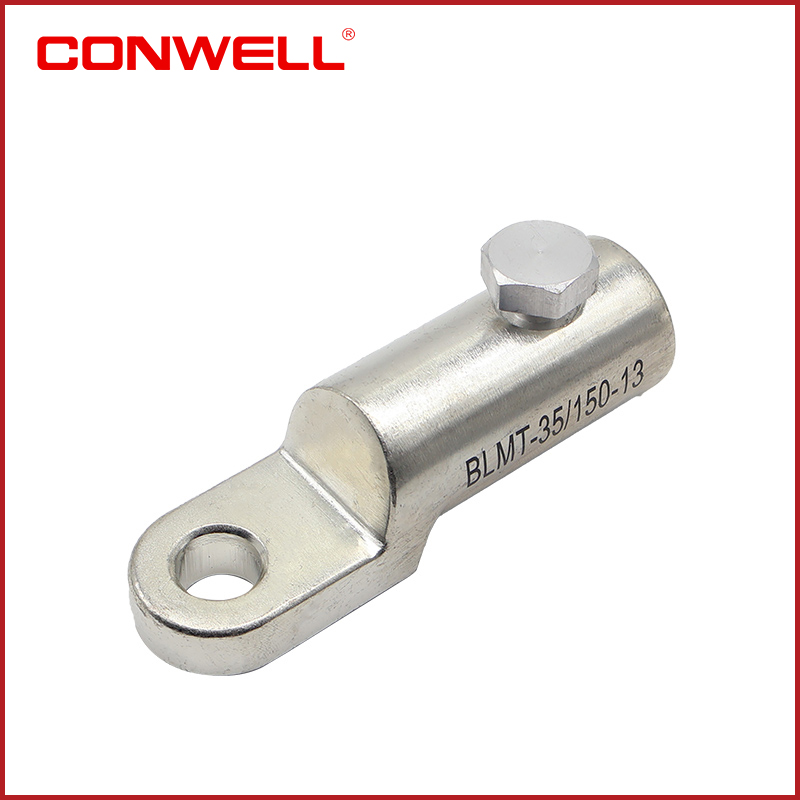

Name:Mechanical Lugs and Connectors
Code:AML
Cable Size: 25-400mm²

Description:

1. Wide application range.

2. Compact design,requires little installation space.

3. Can be used with almost every type of conductor and material.

4.Torque-controlled shear-head bolts guarantee a good electrical contact.

5.Easy installation with standard socket spanner.

Characteristics:

1. Total cross-section: 25-400 mm

2.Pr-engineered design for perfect fit in medium voltage cable accessories up to 42 kV.

3.Lugs are suitable for out door and indoor applications.

4.Connector and lug bodies are made of a high-tensile,tin plated aluminium alloy.

5.Lugs are suitable for outdoor and indoorapplications and are available with different hole sizes.

TECHNICAL DATA:

Cable Size(mm²)

Bolt Size

Code

Dimension (mm)

Bolt Quantity

b

l

AF

25-95

M12

AML25/95-13

24

60

13

1

M16

AML25/95-17

35-150

M12

AML35/150-13

28

86

16

1

M16

AML35/150-17

95-240

M12

AML95/240-13

33

112

19

2

M16

AML95/240-17

M20

AML95/240-21

120-300

M12

AML120/300-13

37

115

24

2

M16

AML120/300-17

185-400

M12

AML185/240-13

42

137

24

3

M16

AML185/240-17

M20

AML185/240-21
