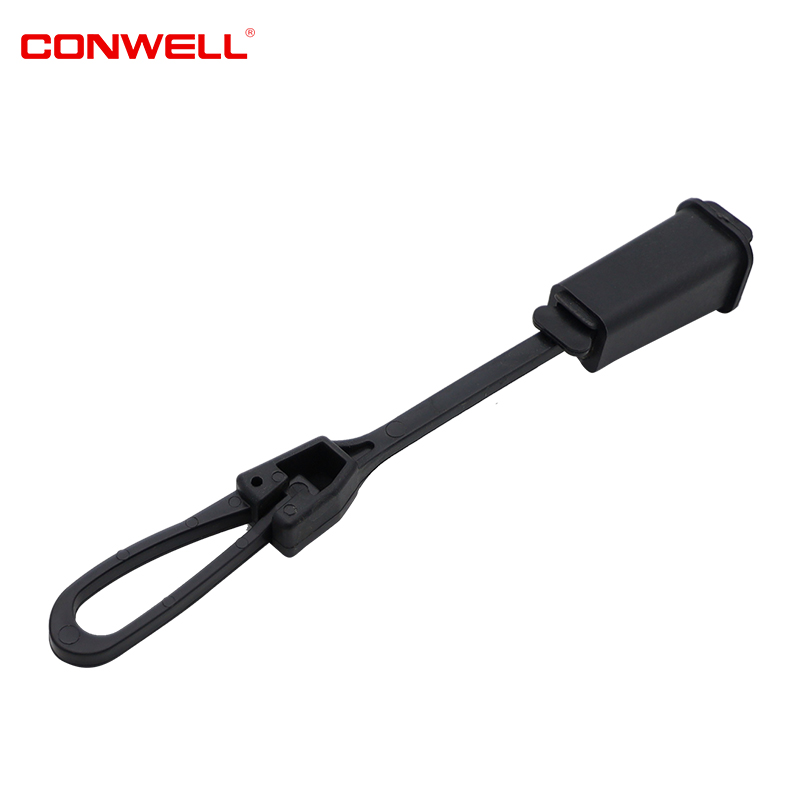

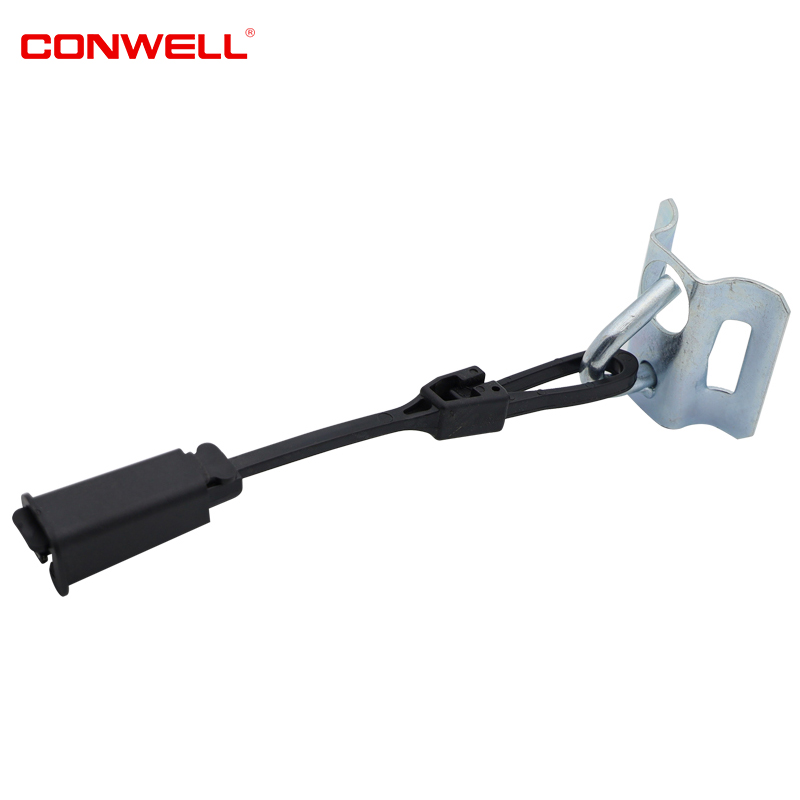

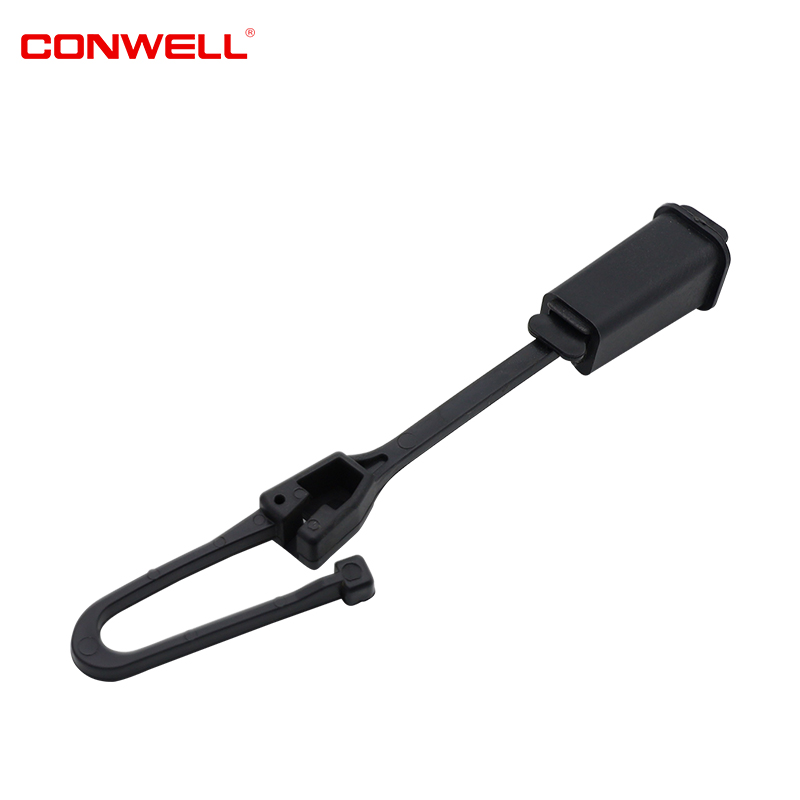

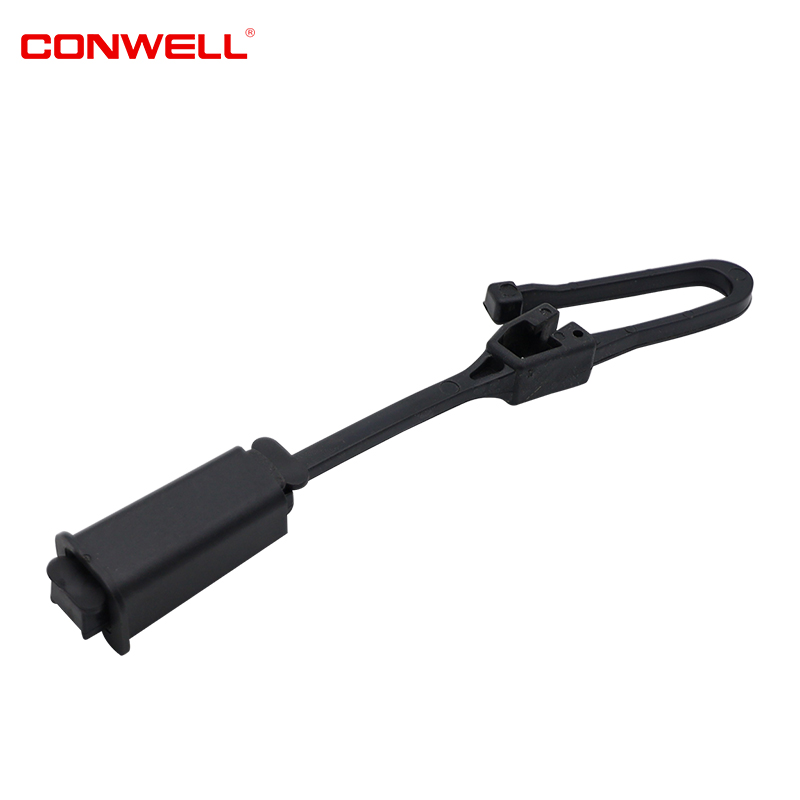

ODWAC-22S Fiber Optic Drop Cable Clamp

ODWAC-22S Fiber Optic Drop Cable Clamp

Cable Diameter:(2-3)*(4-8)mm
Break Load:1kN

Name: ODWAC-22S Drop Cable Clamp

Type: Tension clamp for FTTH drop cable

Components: Body, wedge, shim, and a solid wire bail crimped to the wedge.

Material: All parts are made of stainless steel.

Features: Designed to withstand tension, with components that have passed tensile tests.





1. Product Parameter of ODWAC-22S Drop Cable Clamp

Model

ODWAC-22S

Cable Diameter

(2-3)*(4-8)mm

Break Load

1kN

2. Product Feature of 1kv ODWAC-22S Drop Cable Clamp

ODWAC series are tension clamps for FTTH drop cable. A type of wire clamp, which is widely used

to support telephone drop wire at span clamps, drive hooks, and various drop attachments.

3. Product Application of ODWAC-22S Drop Cable Clamp

The fiber drop wire clamp ODWAC is composed of a body, a wedge and a shim. A solid wire bail is

crimped to the wedge. All parts are made out of stainless steel. CONWELL offer this tension clamp

with appropriate dead-end anchor FTTH ODWAC clamp, S-type, ACC and other FTTH clamps.

All the assemblies passed the tensile tests, operation experience with temperatures ranging from

 -60 °C up to +60 °C test, temperature-cycling test.
