Product Descritpion

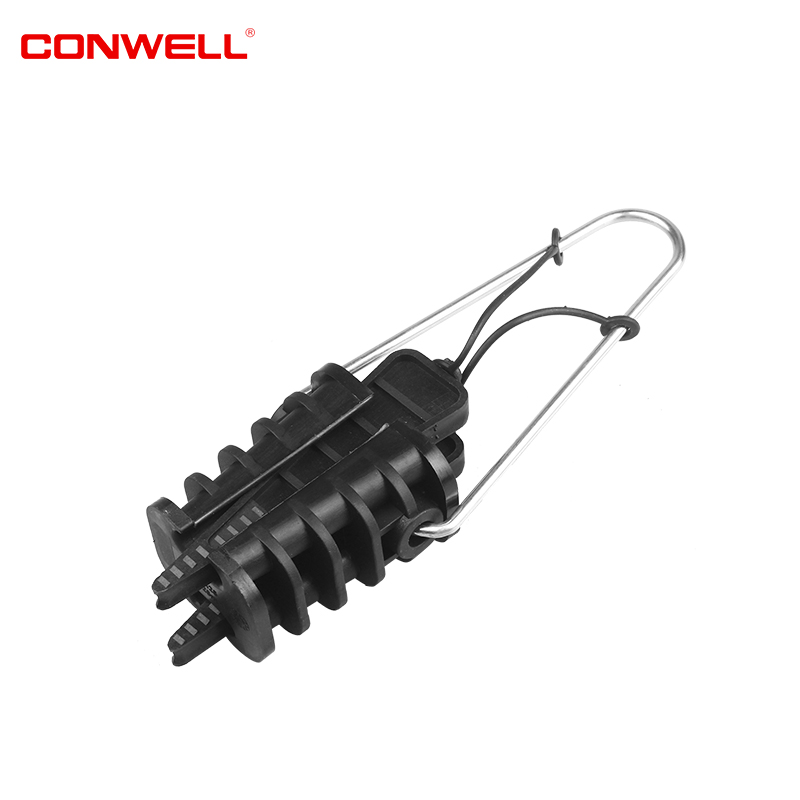

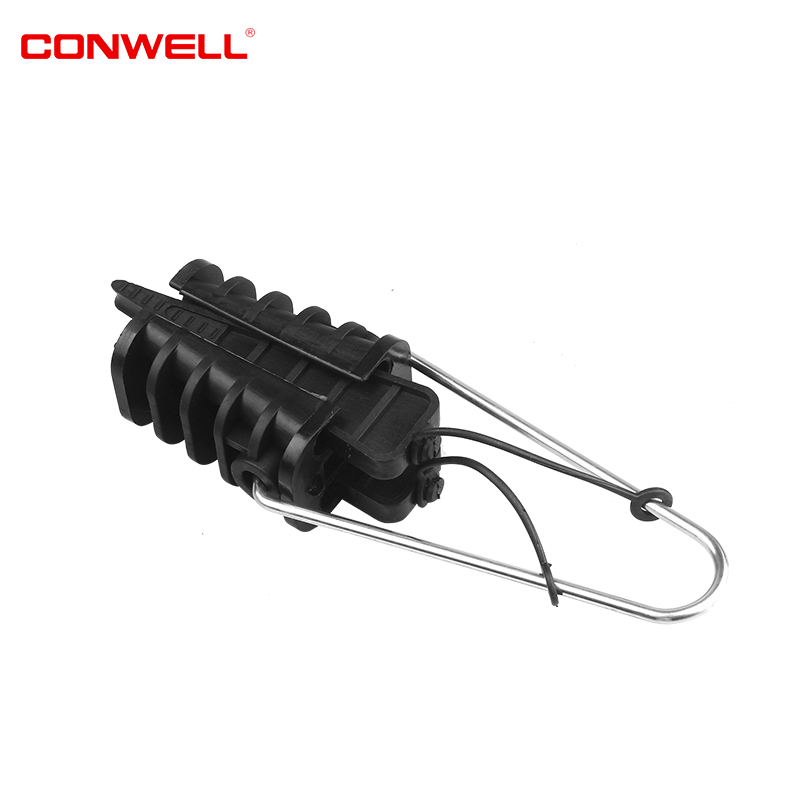

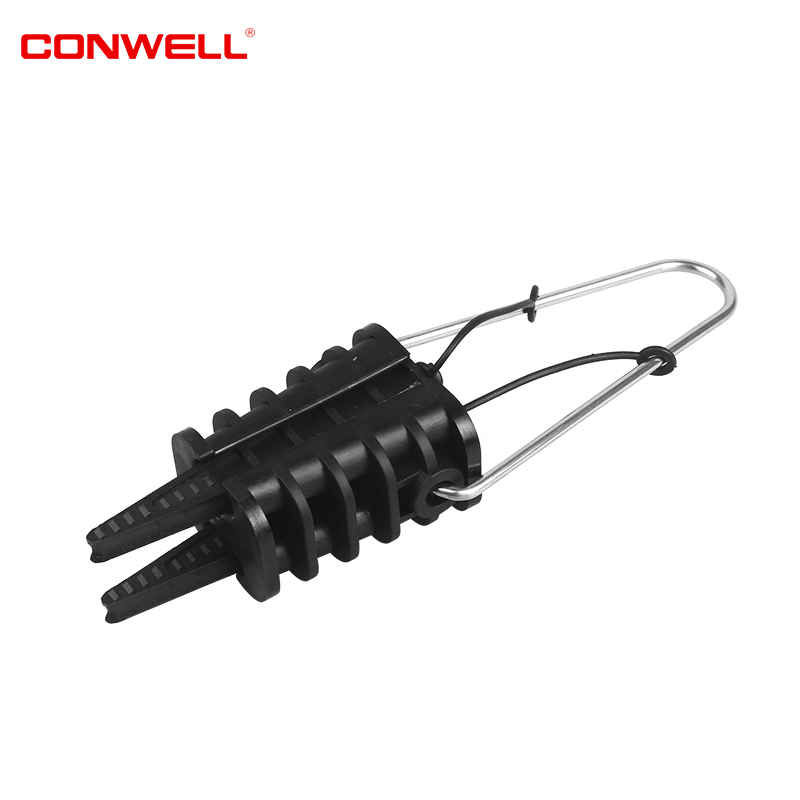

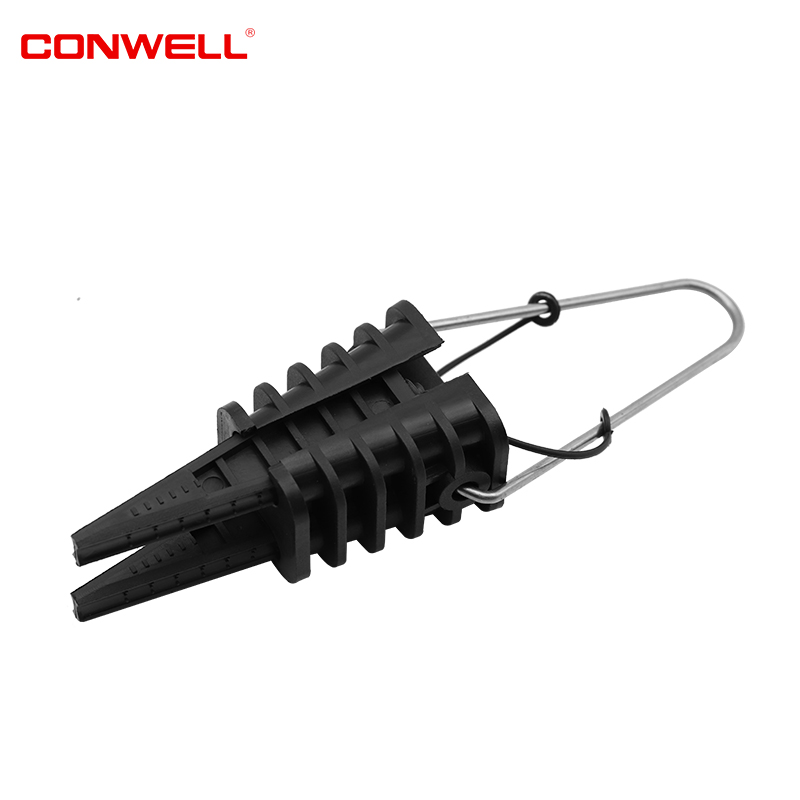

The tension clamp is designed for service line with 4 conductors.
-- Clamp body is made of high mechanical strength and weather resistant insulation material.
-- Standard: NFC33-042
Technical Specification
Dimensions
Code
Cable Size
Breaking Load
Weight
PA4/25
4x16~25mm²
2.5kN
/
PA4/50
4x16~35mm²
2.5kN
/
Use:
For dead-ending of cables with round shape.
Construction
Component
Material
Body and Wedge
Weather and UV-radiation resistant thermoplastic
Installation:
The clamp is opened and the messenger wire is inserted between the wedge and the body. The clamp is then closed and strained.
Standard
NFC 33-042
