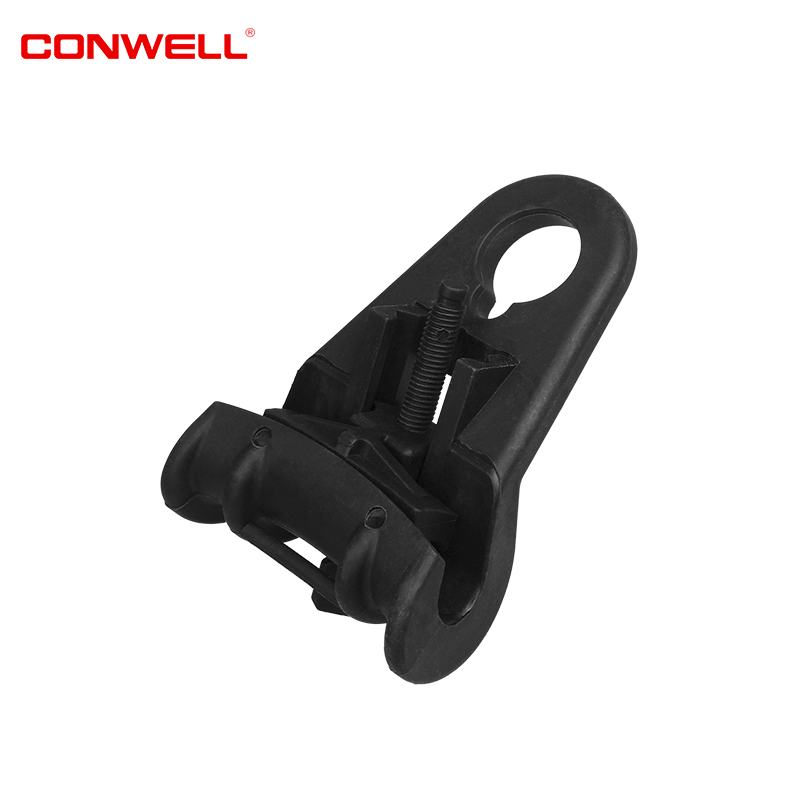

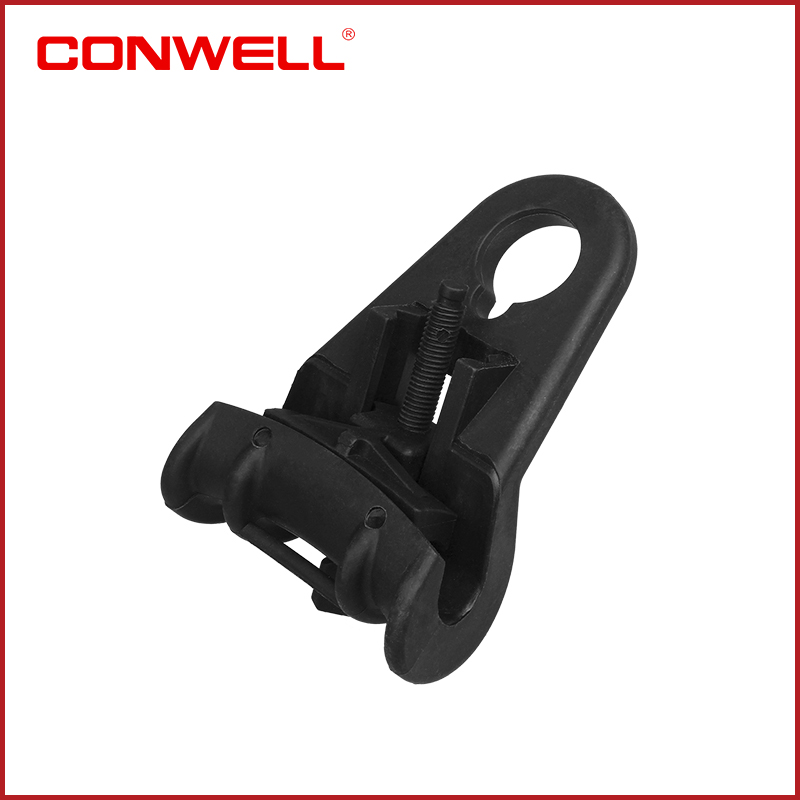

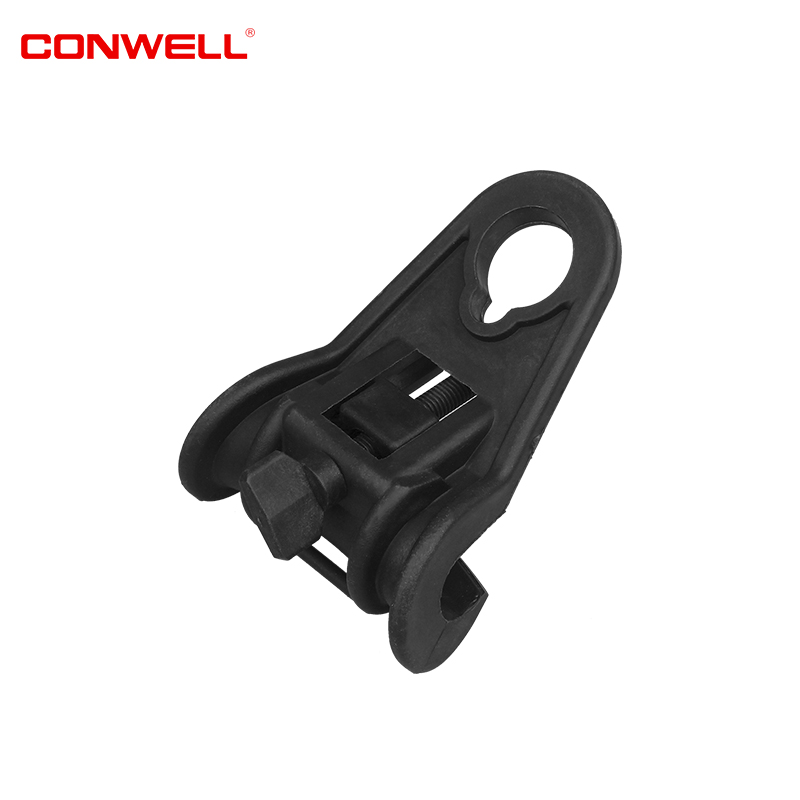

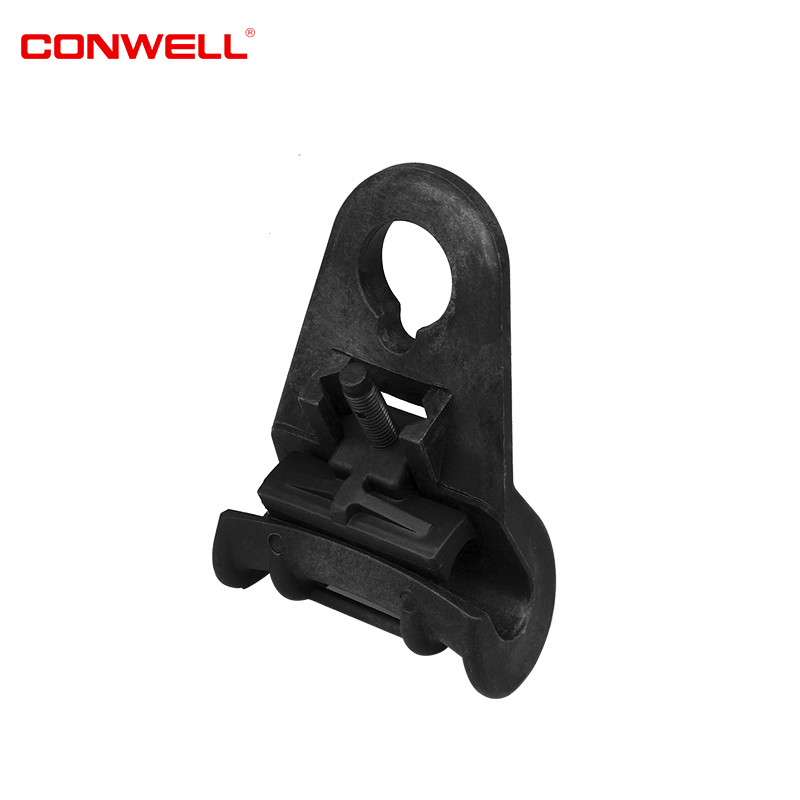

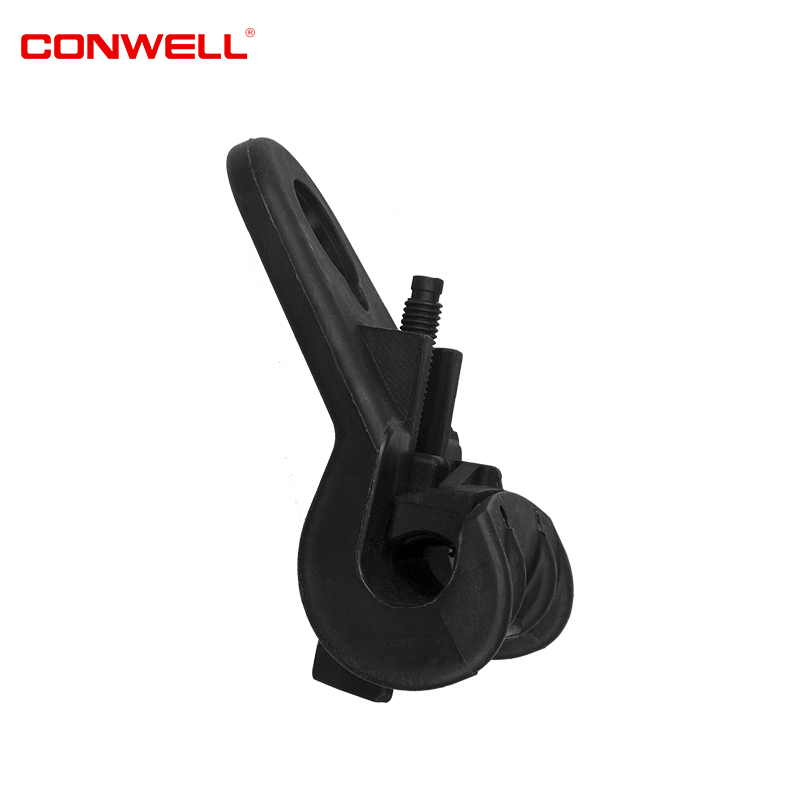

Suspension Clamp

Code: 1.1A
Name: Suspension Clamp
Cable Size: 16-95mm²
The 1.1 series suspension clamp are used to hang LV-ABC cables on poles with the insulated neutral messenger.
Standard: EN50483-3, NFC 33-040

Description:For suspension of LV ABC cables in an insulated messenger wire system(IMWS). Suitable for every climatic conditions.

Technical Specification

Dimensions

Weight:177g

Cable Size:16-95mm²

Mechanical

Breaking Load:9KN

Specification

Use: Used for hanging the cable.

Construction:UV resistant plastic

Installation: Messenger wire is installed into the groove and locked with the locking part.

Tools required: No tools required

Standard:NFC 33-042; EN 50-483

Inner Package: 5pieces in inner bag

PCS/CTN: 125pcs

Carton Size: 57*28*28cm

G.W./N.W.: 23.5/22.5KGS
