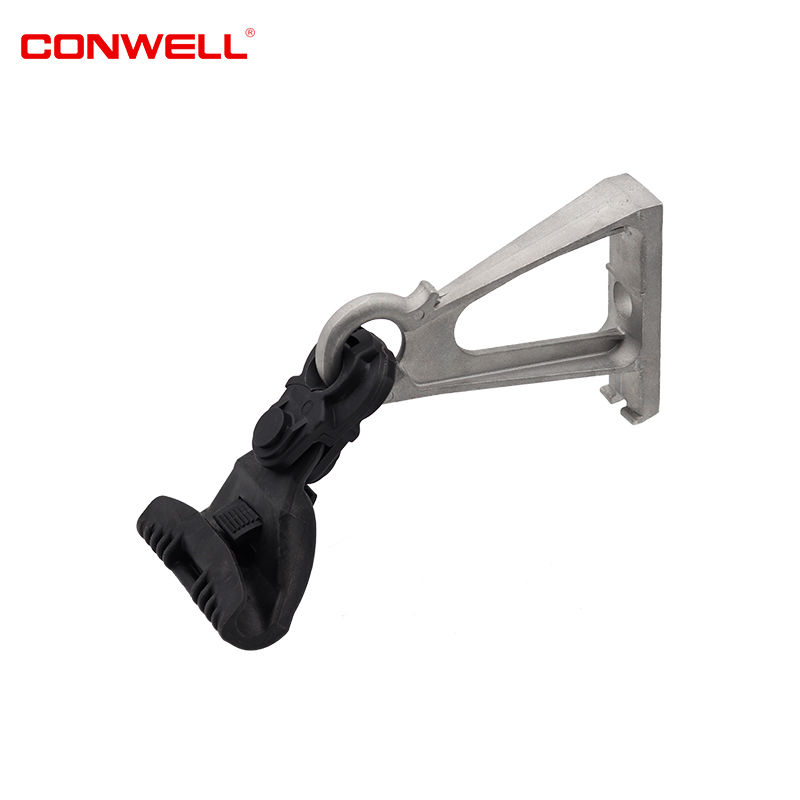

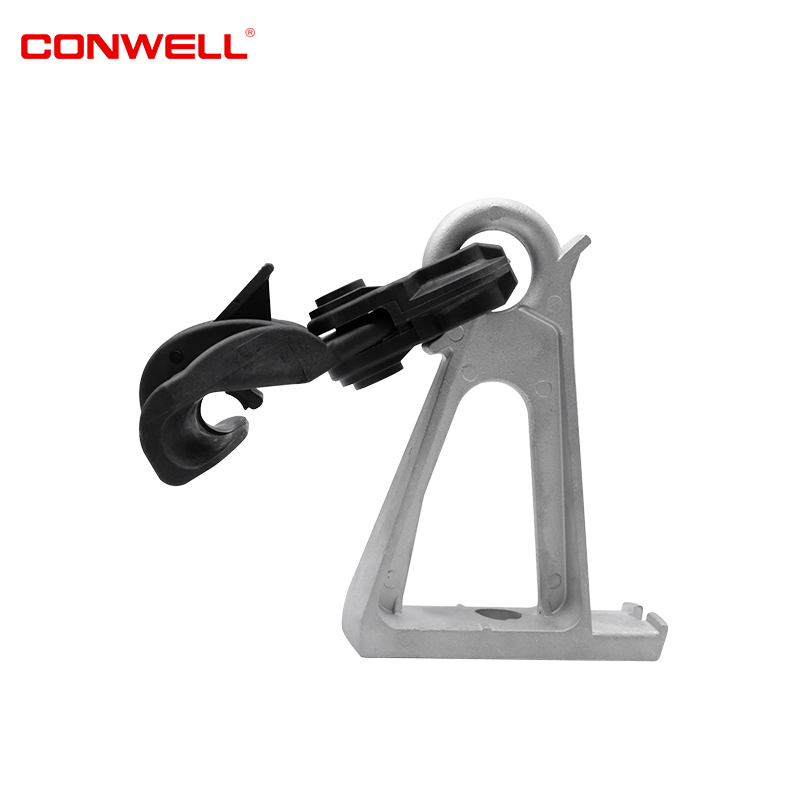

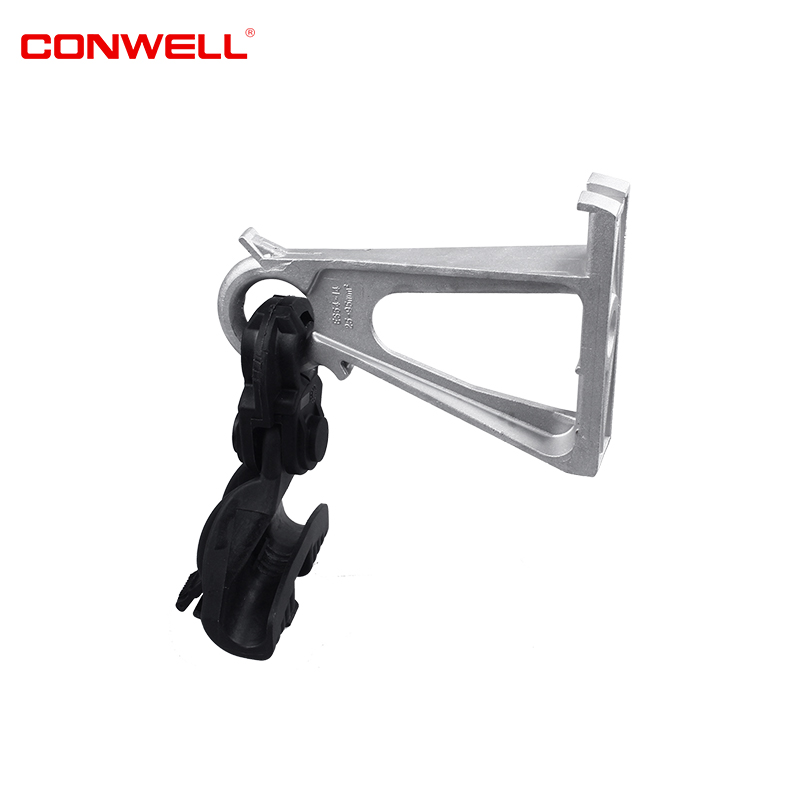

1kv Suspension Clamp ES1500 for 25-95mm2 Aerial Cable
Product introduction of 1kv Suspension Clamp ES1500 for 25-95mm2 Aerial Cable
CONWELL 1kv Suspension Clamp ES1500 for 25-95mm2 Aerial Cable. Suspension Clamps are used along with a bracket or other supporting hardware to suspend and grip, without damaging, a LV AB Cable system. As shown in the images below, they can also be used in conjunction with insulation piercing connectors to provide service connections by tapping the mainline.We are expecting become your long -term partner in China.
Product Parameter of 1kv Suspension Clamp ES1500 for 25-95mm2 Aerial Cable
| Model | ES1500 |
| Cross-section | 25~95mm² |
| Breaking Load | 12kN |
Product Feature of 1kv Suspension Clamp ES1500 for 25-95mm2 Aerial Cable
1kv Suspension Clamp ES1500 for 25-95mm2 Aerial Cable for Self-Supporting Systems suspends and holds the insulated bundle of the LV-ABC system using a bolt and wingnut assembly without the requirement of any additional tools. The product is compatible with a variety of hook bolts.
The material used for manufacturing of Suspension Clamp:
Body: Hot-dip galvanized steel
Insert: UV and weather-resistant elastomer
Bolts: Galvanized steel
Product Application of 1kv Suspension Clamp ES1500 for 25-95mm2 Aerial Cable
Suspension clamp is used for hanging ABC in the air, by cliping a netural messenger cable, and connected to a eye bolt, or a pig tail hook, which is fixed on the wooden pole.
Description:For sus pensioning of LV ABC cables in an insulated messenger wire system (IMWS). Suitable for every climatic conditions. Bracket pre installed.
Technical Specification
Dimensions
Weight:422g
Cable Size:25-95mm²
Mechanical
Breaking Load:12KN
Specification

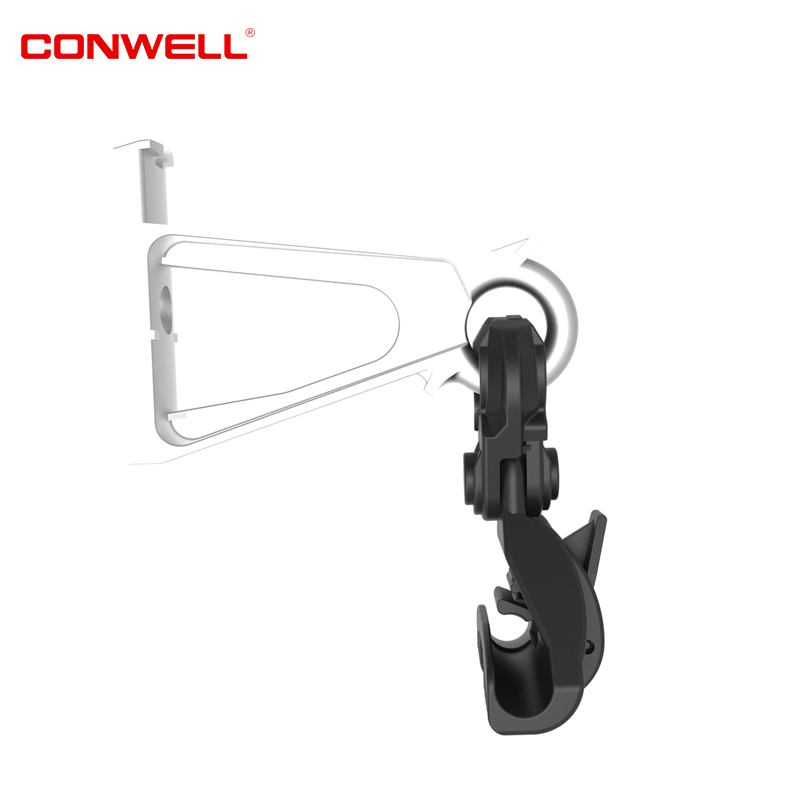

Use:Suspension clamp with bracket for anchoring insulated messenger wire system.
Construction:UV resistant plastic + Corrosion resistant aluminum alloy.
Installation: Messenger wire is installed into the groove and locked with the locking part.
Tools required: No tools required
Inner Package: 1pieces in inner bag
PCS/CTN: 40pcs
Carton Size: 57*28*30cm
G.W./N.W.: 18/17KGS
