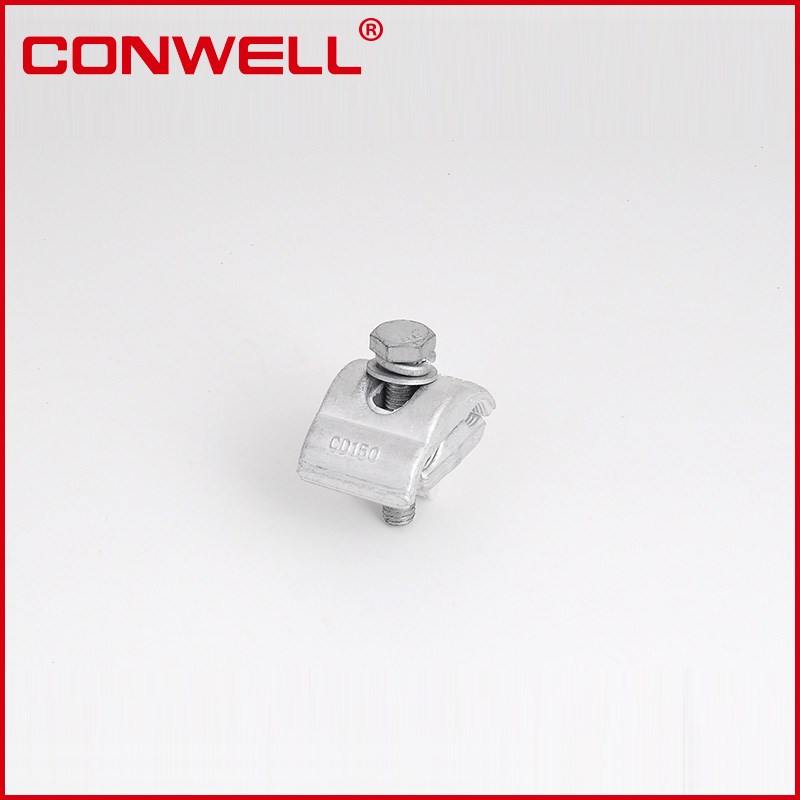

Description:APG Aluminum Parallel Groove Clamp is used for the Non-bearing connection and offset of aluminum stranded wire, aluminum stranded wire, it's used with insulating cover for the effect of protective and insulation.
Specification
APG-A Drawing
|
Type |
Conductor cross section(mm²) |
Bolt |
|
APG-A1 |
Al 16-70 |
1xM8x40 |
|
APG-A2 |
Al 16-150 |
1xM8x45 |
APG-B Drawing
|
Type |
Conductor cross section(mm²) |
Bolt |
|
APG-B1 |
Al 16-35 |
2xM8x45 |
|
APG-B2 |
Al 16-70 |
2xM8x40 |
|
APG-B3 |
Al 16-150 |
2xM8x50 |
APG-C Drawing
|
Type |
Conductor cross section(mm²) |
Bolt |
|
APG-C1 |
Al 16-70 |
3xM8x45 |
|
APG-C2 |
Al 16-150 |
3xM8x50 |
|
APG-C3 |
Al 25-240 |
3xM10x60 |
|
APG-C4 |
Al 35-300 |
3xM10x70 |
