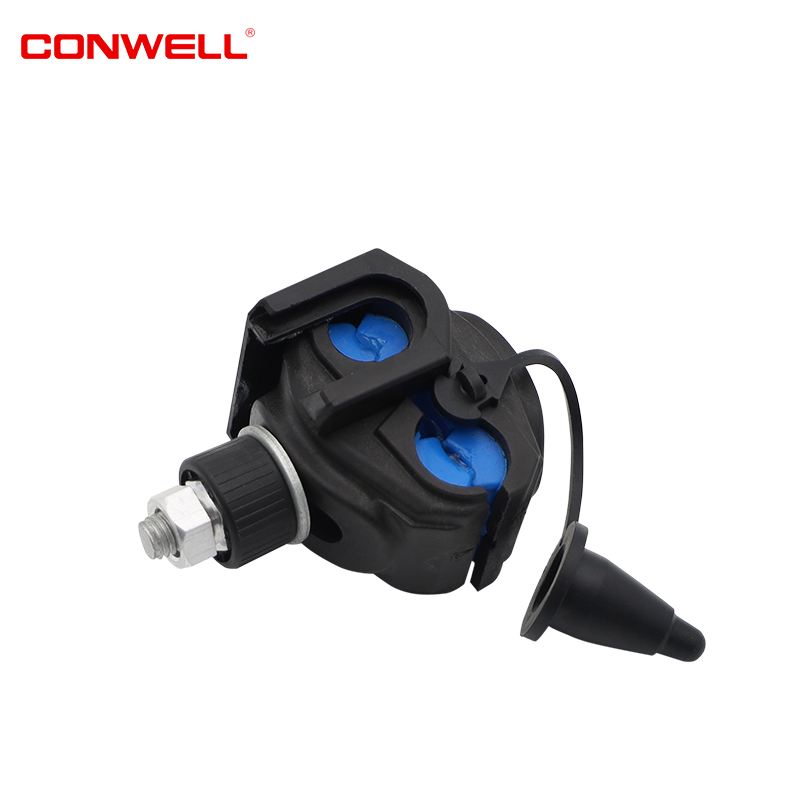

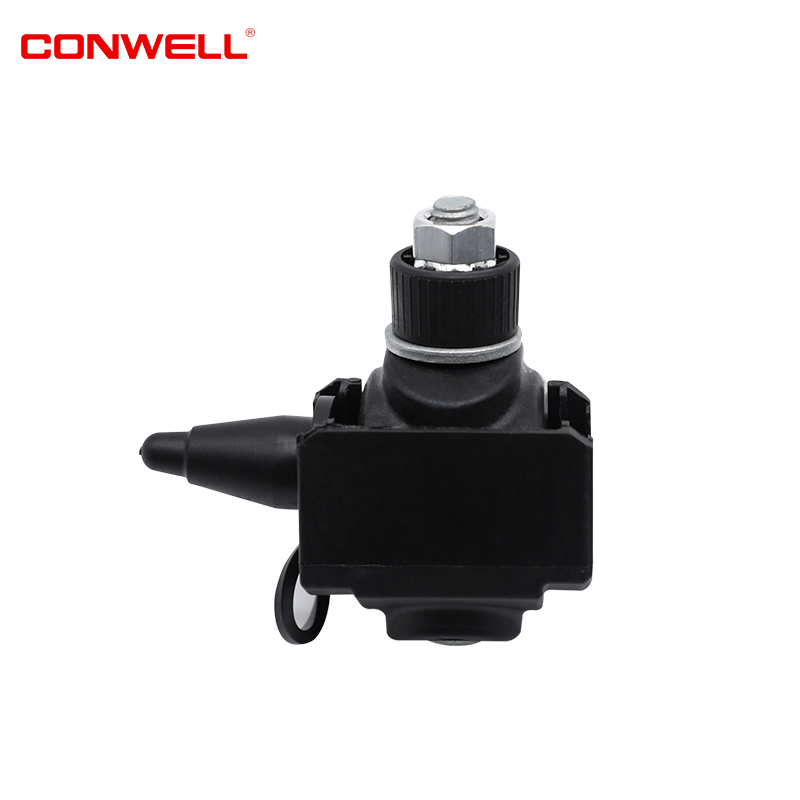

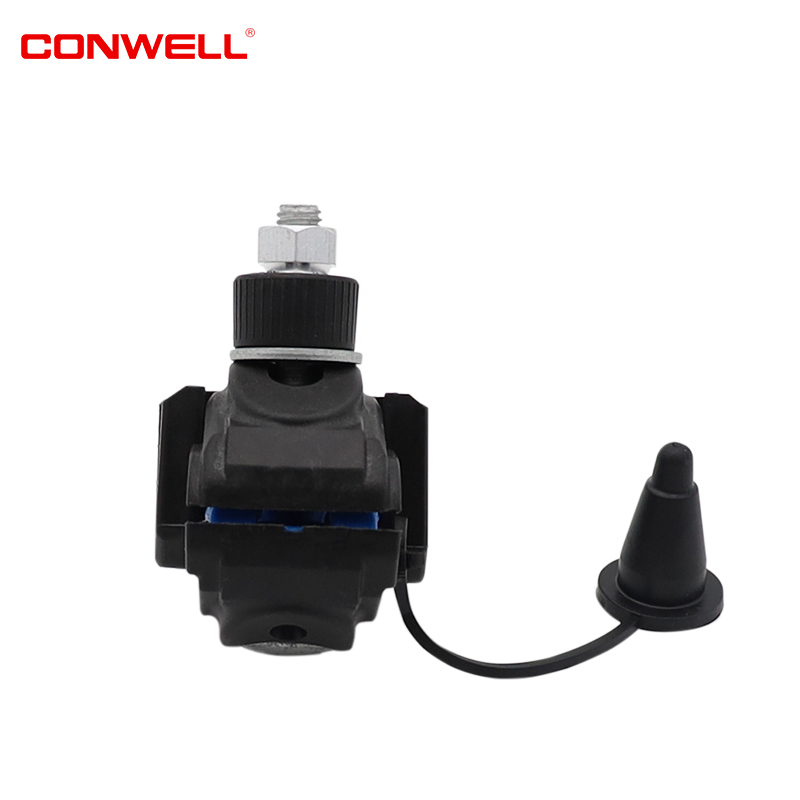

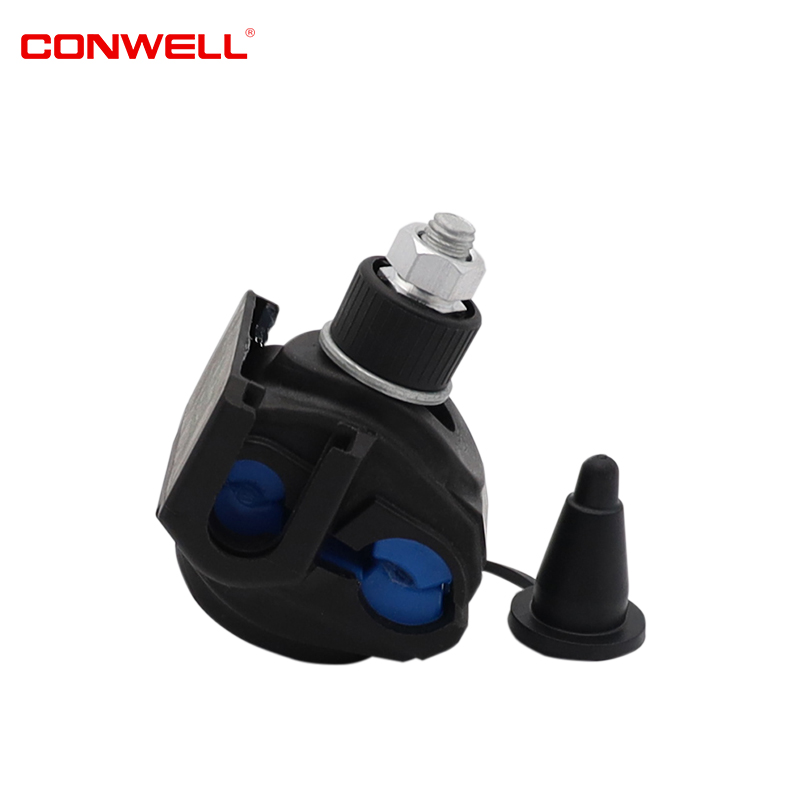

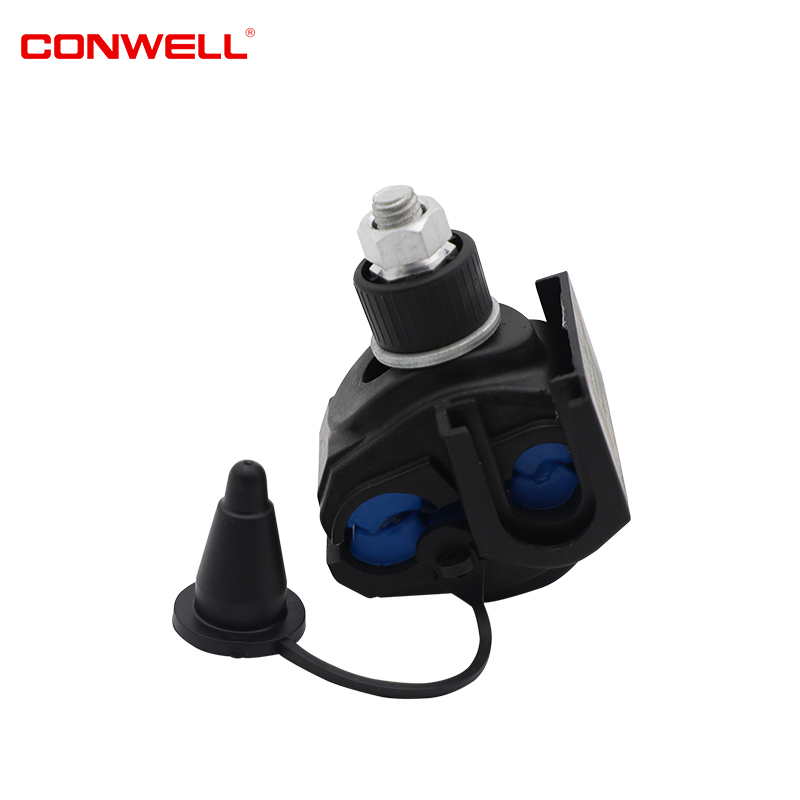

1kv Waterproof Insulation Piercing Connector KW2-150BT for 16-150mm2 Aerial Cable
Product Parameter of 1kv waterproof insulation piercing connector
Product Feature of 1kv waterproof insulation piercing connector
They have been designed for use on low voltage distribution networks and allows the installer to tap off from a cable already present, without removing any insulation. These insulation piercing connectors are waterproof and corrosion-proof.
Product Application of 1kv waterproof insulation piercing connector
Product introduction of 1kv waterproof insulation piercing connector
CONWELL insulation piercing connectors is used for all AB cable systems (messenger wire and self-supporting systems) that accept a tap connection. This connection further distributes a line in street lighting and domestic utility connections. The design makes it possible to entirely seal the connection against water penetration, making it a waterproof connector.
We devoted ourselves to abc cable accessories more than 18 years ,cutting-edge technology, quality materials and continuous testing form the basis of CONWELL connectors. We are expecting become your long -term partner in China.
Model
KW2-150BT
Main line section
16~150mm²
Branch line section
4~50mm²
Torque
15Nm
Nominal current
157A
Bolt
M8*1
a) Insulated LV and HV lines with inter connectors provide promising insulation and robust strength for the terminal and adjacent ports.
b) To establish the connection between twisting LV network to service cables.
c) Street lights, tap off, distribution box charging, and jumper connections are the four principal applications for IPCs.
d) Also applicable in Low-voltage insulated household wire T connection; building power distribution system T connection; street lamp distribution system and ordinary cable field branch; underground power grid cable connection; line connections for lawn flower bed lighting.
Technical Specification
|
Dimensions |
|
|
Main Cable Line |
16-150mm² |
|
Branch Cable Line |
4-50mm² |
|
Nominal Current |
157A |
|
Features |
|
|
Bolt |
M8*70*50 |
|
Mechnical |
|
|
Tightening Torque |
15Nm |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
