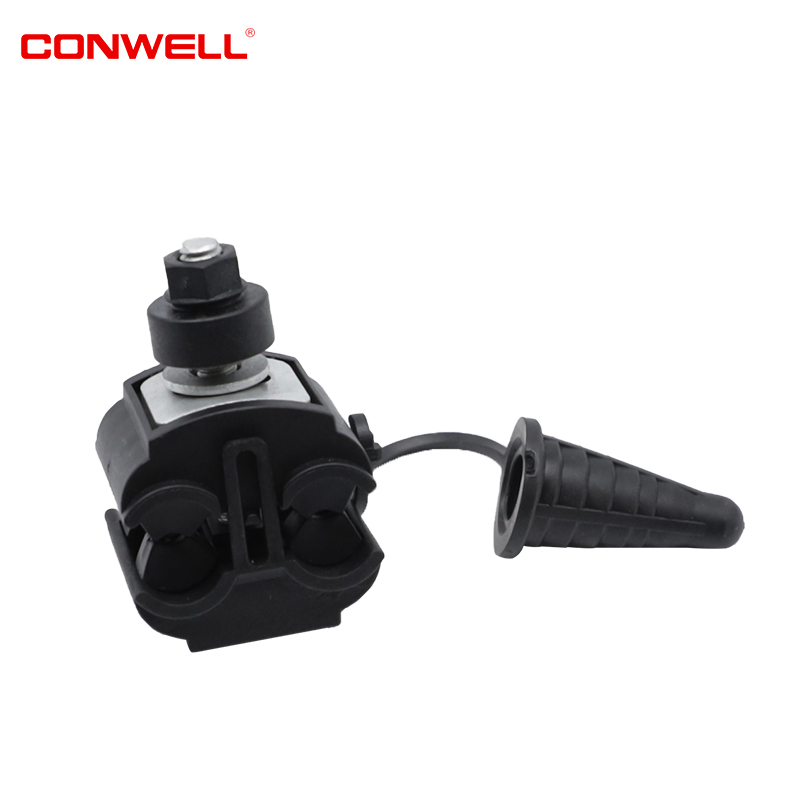

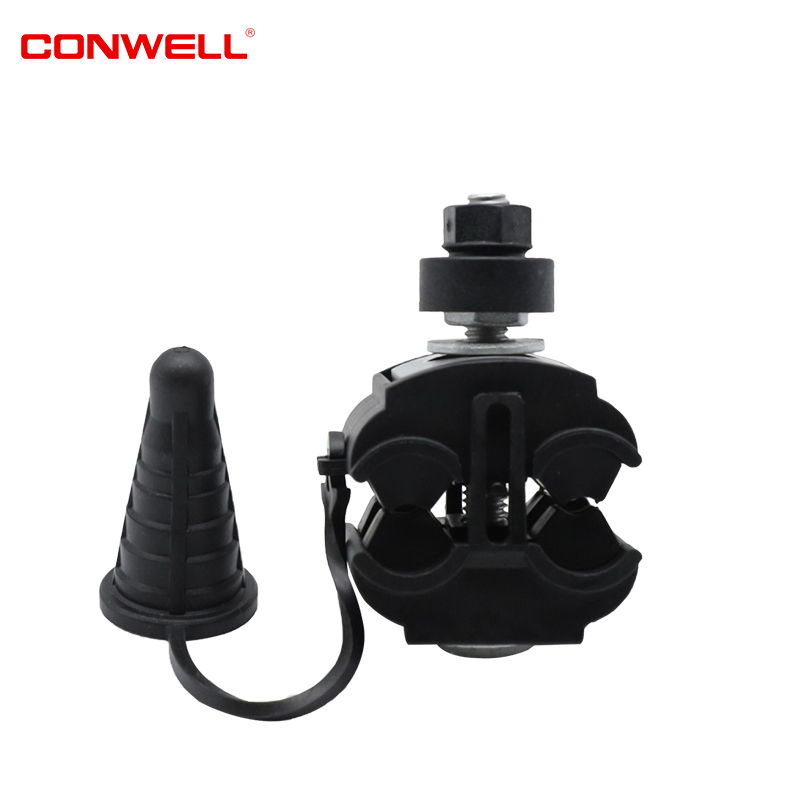

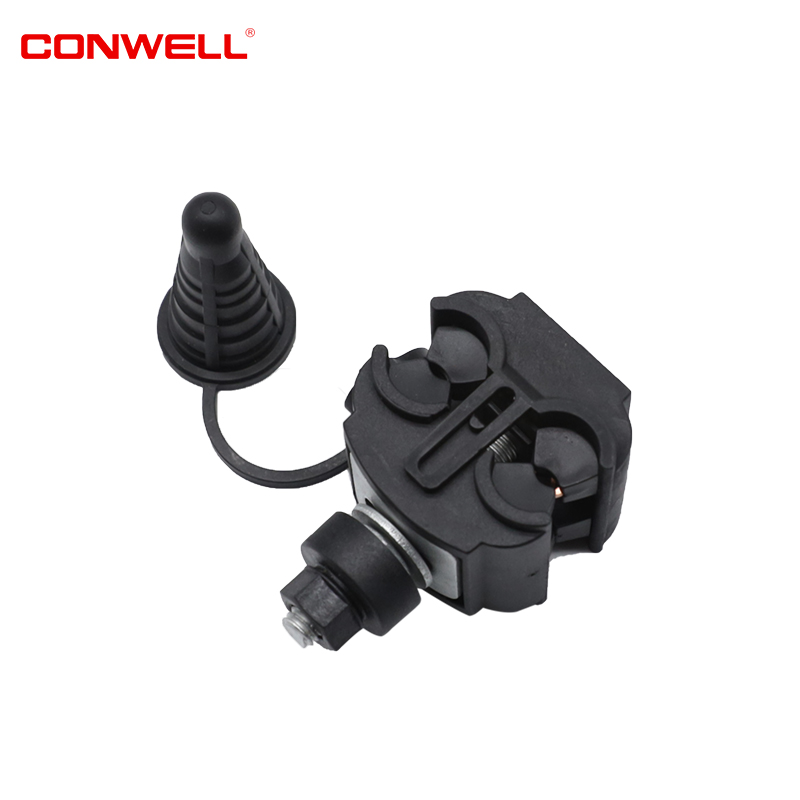

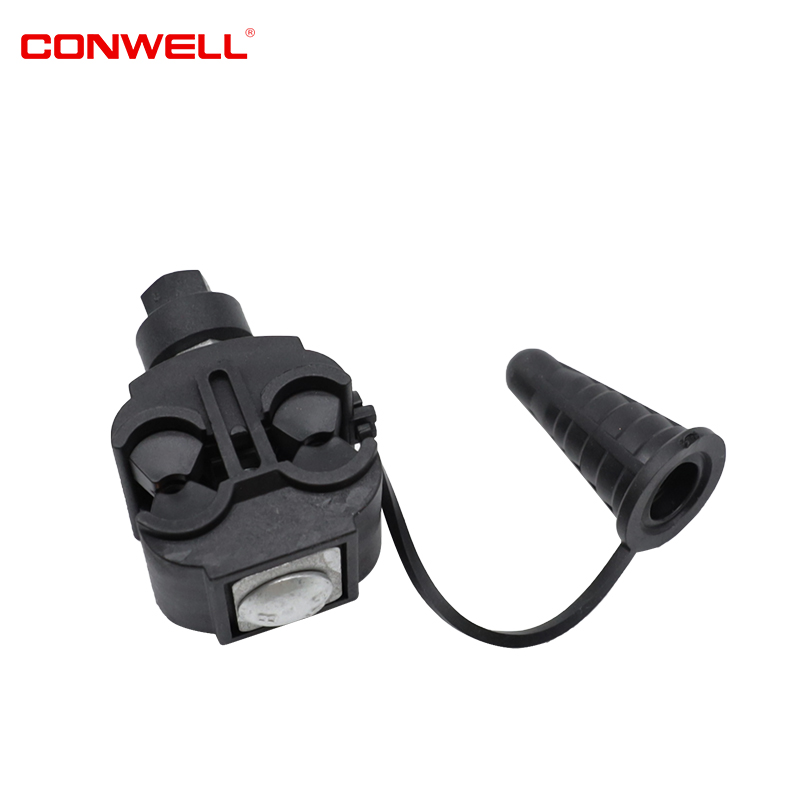

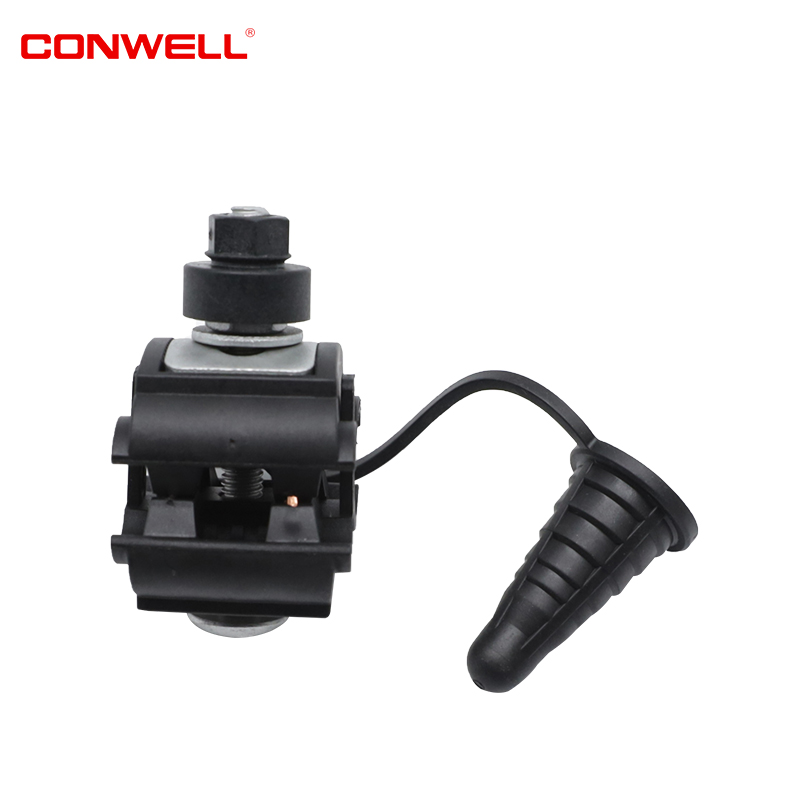

1kv Waterproof Insulation Piercing Connector KW4-35 for 4-35mm2 Aerial Cable
Product introduction of 1kv waterproof insulation piercing connector
All AB cable systems (message wire and self-supporting systems) that provide a tap connection employ CONWELL insulation piercing connectors. This connection further disperses a wire used for street lights and home utility connections. It might entirely tolerate water infiltration thanks to the design, making it a waterproof connector.
CONWELL connections are built on a foundation of cutting-edge technology, high-quality components, and ongoing testing. We have been making cable attachments for over 18 years. We want to work with you as a long-term partner in China.
Product Parameter of 1kv waterproof insulation piercing connector
| Model | KW4-35 |
| Main line section | 4~35mm² |
| Branch line section | 4~35mm² |
| Torque | 7Nm |
| Nominal current | 120A |
| Bolt | M6*1 |
Product Feature of 1kv waterproof insulation piercing connector
According to their design, they can be utilized on low voltage distribution networks and allow tap-off from an existing cable without removing any insulation. These insulated piercing connections are resistant to water and corrosion.
Product Application of 1kv waterproof insulation piercing connector
a) Insulated LV and HV lines with inter connections offer the terminal and nearby ports solid insulation and strength.
b) To connect the twisting LV network cables to the service wires.
c) The four main uses of IPCs are for street lights, tap off, distribution box charging, and jumper connections.
d) It can also be used for underground power grid cable connections, low-voltage insulated household wire T connections, building power distribution system T connections, street lamp distribution systems and regular cable field branches, and line connections for flower bed illumination.
Technical Specification
|
Dimensions |
|
|
Main Cable Line |
4-35mm² |
|
Branch Cable Line |
4-35mm² |
|
Norminal Current |
120A |
|
Mechnical |
|
|
Tightening Torque: |
7Nm |
