• Product Description
KW-1000 Digital Fault indicator Monitoring System for on-line monitoring line running, fault condition and ineparameters,
is a set of distributed monitoring and centralized management,instant notification type inteligent electricpower line management system.
In the system,the detection ofterminal distribution mounted on the power transmissionnelwork to monitor the location of the
(such as: every branch and accidents period, cable joint, etc.) Can real-timemonitorline operation, when short circuit fault,
ground fault(earth faulty), faut line, theft cases,etc.occurs in line, Monitor centelin the alarm display within dozens of seconds,
and send the information to the phone ofmaintenance personnel who ison duty. Can display the line load current and temperature changes.
You can never leave home, a comprehensive graspline operation, And can according to user's need to increase other monitoring content.
1.Fault indicator technical parameter
2、Fault data collection terminal parameter
Parameter ltems
Parameter Name
Parameter Details
Electrical Parameter
Short circuit fault action current
100A (Default, Can be set before delrvery)
Earth fauit action current
40A (The default injection method of grounding, Can be set before delivery)
Analog measurement cycle
Measuring one time every 30minuts (Default, Can be set before delivery)
Applicable valtage grade
6-35 kV
Applcable line current
10-700A(Default)
Appicable power frequency
50Hz/60Hz (According customer’s request)
Maximum short circuit current
25kA/4s
Short circuit recognition time
0.02-5s
Current measurement accuracy
±3%
Power supply mode
3.6V 2.4A Lithium battery + Self-charging from the cable
Communication mode
Radio frequency
Static power loss
S17μA
Action power loss
<34 mA
Minimum load current of the insulated cable
10A
Minimum load current of the bare cable
0A
Engineering Paramete
Auto reset mode
Time reset+Auto reset afier the power line recower (According cusiomer’s request).
Action times
≥4000 Times
Continuous flash time
>3000H
Flash time interval
4s±10%
Ambient temperature
—40℃~+75 ℃
Relative humidity
≤95%
Applicable wire diameter
16-450mm2
Maximum wind speed
≤40m/s
Applicable altitude
<5000m
Fault alarm accuracy
≥95%
Protection class
IP68
Pollution class
IV
Working life
8 Years
MTBF
60000 H
Weight
500g more or less
Parameter ltems
Parameter Name
Parameter Details
Power Loss
Performance
Static power loss
<10mA
Maximum power loss (GPRS communication)
<1000 mA
Maximum power ioss (Vithout communication)
<200 mA
Communication
Parameters
Radio frequency
2.4G，(Free Frequency)
GSM Transmitting and receiving performance
Meet GSM teminal industrial standards(Customize)
GPRS Transmitting and receiving perfomance
Meet GPRS terminal industrial standards (Default)

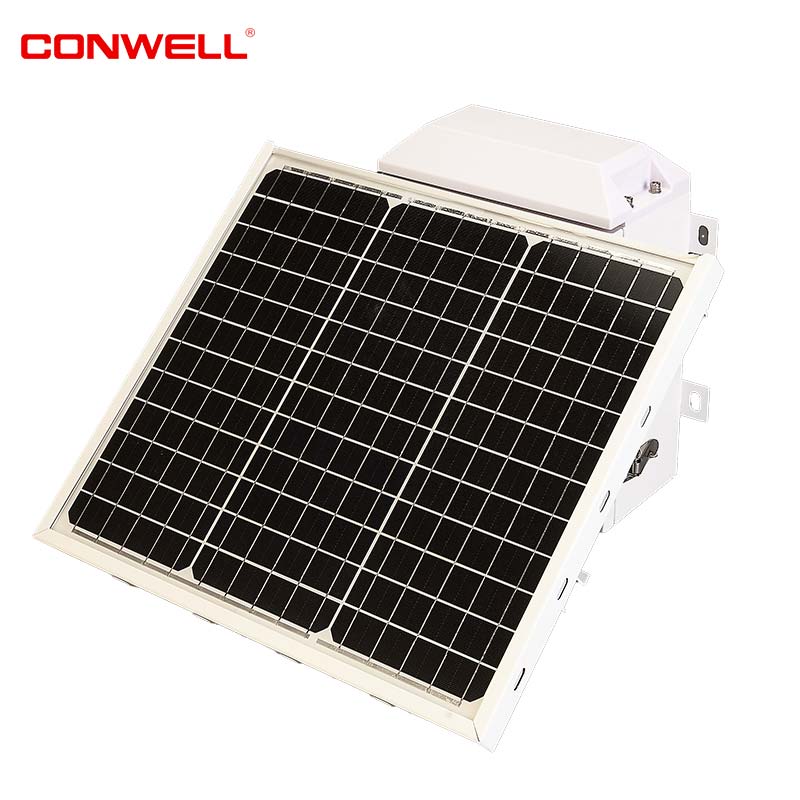

Power Supply Mode
Solar cell panel
16W，17.5V
Storage battery
12Ah
The continuous working days under darkness
More than 10 days
Engineering Paramete!
Ambient temperature
—40℃~+75℃
Relative humidity
≤95%
Applicable altitude
≤5000 m
Storage battery working life
3-5 Years
MTBF
60000 H
• Product installation dimension drawing
