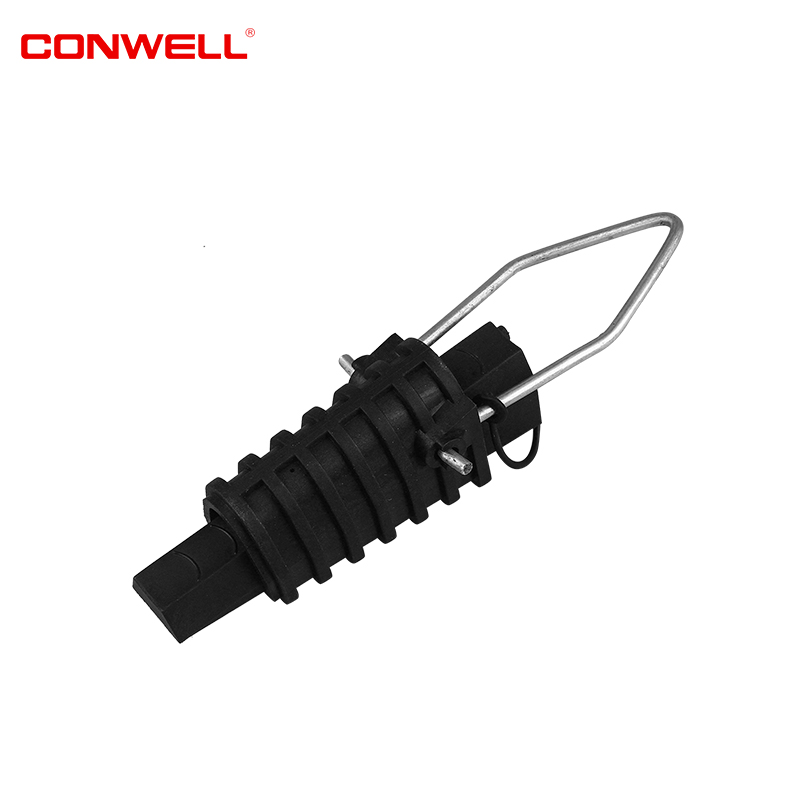

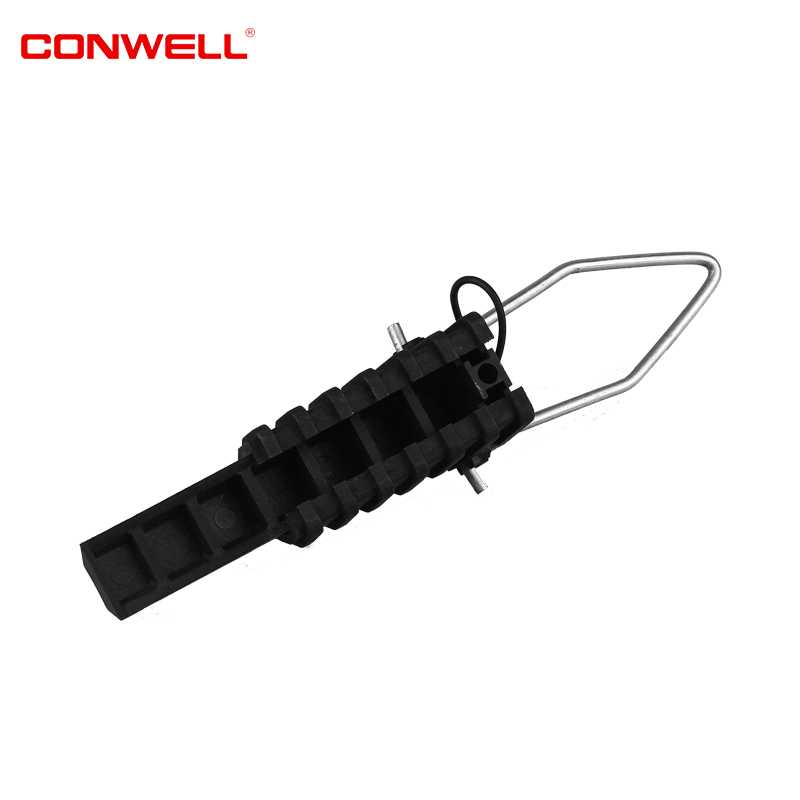

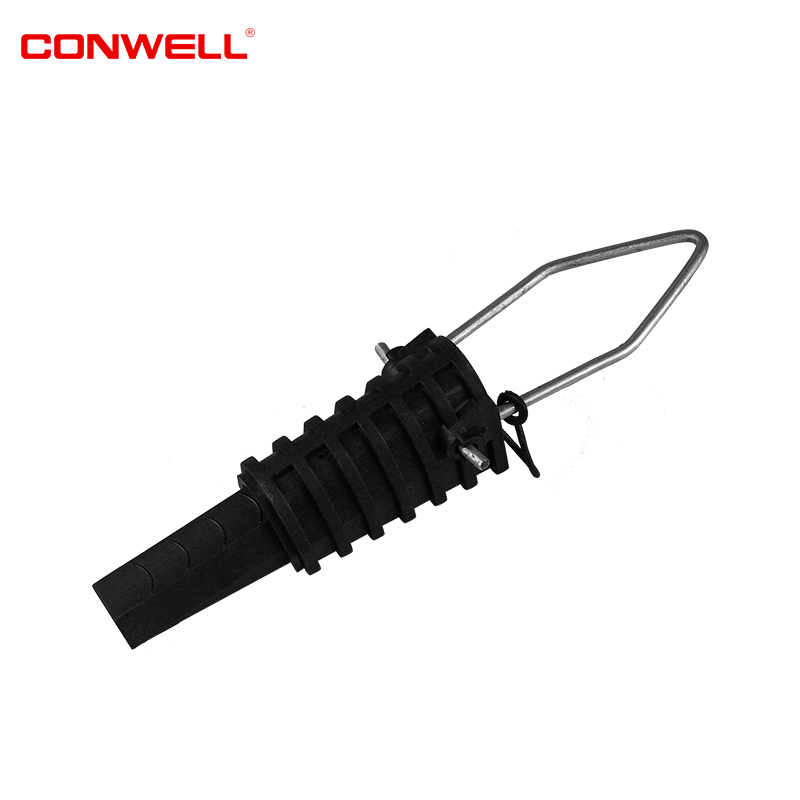

Plastic Dead end Clamp

Code: PA16~95W
Cable Size: 4-120mm²
The tension clamp is designed for service line with 4 conductors.
- Clamp body is made of high mechanical strength and
weather resistant insulation material.
- Standard: NFC33-042

Description:Used for the tension of cables size6-95mm2 with round shape. Light weight, no loose parts. The clamp is easy to install, without cutting the cable. The body is made of weather and UV-radiation resistant thermoplastic and the bail of hot-dip galvanized steel.

Technical Specification

Dimension

Weight:

139g

Cable Size:

4-120mm²

Mechanical

Breaking Load

2.5kN / 1.5kN

Specification

Use:

For dead-ending of cables with round shape.

Construction

Component

Material

Body and Wedge

Weather and UV-radiation resistant thermoplastic

Bail

Hot-dip galvanized steel

Installation

The clamp is opened and the messenger wire is inserted between the wedge and the body. The clamp is then closed and strained.

Standard

NFC 33-042; EN 50-483

Normal Package

Inner Package: 10pieces in inner bag

PCS/CTN: 160pcs

Carton Size: 57*21*42.5cm

G.W./N.W.: 23.5/22.5KGS

Specific packaging can be made to order.
