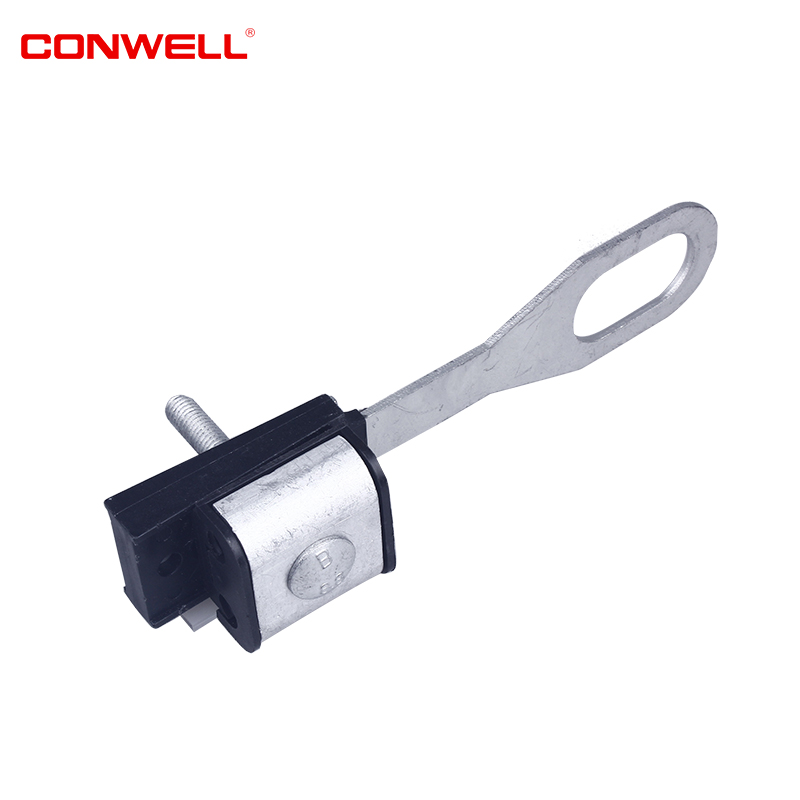

Metal Tension Clamp

Metal Tension Clamp

Code: KW160
Cable Size: 2*16-35mm²

Description:Tension clamp for the anchoring of 2-core overhead cables to poles or walls by standard hooks. Tension clamp is equipped with a spring to make the installation easier.

Technical Specification

Dimension

Weight:

174g

Cable Size:

2*16-35mm²

Mechanical

Breaking Load

5kN

Specification

Use:

Used for the termination of 2 core overhead cable to poles or walls by means of standard hooks.

Construction

Component

Material

Body

Corrosion proof aluminum alloy

Bolt,Washer

Hot-dip galvanized steel

Plastic Parts

Frost, heat and UV-radiation resistance plastic

Installation

Open the screw and put conductors into grooves.Tighten the shear head nut.

Standard

NFC 33-042; EN 50-483

Inner Package: 10pieces in inner bag

PCS/CTN: 100pcs

Carton Size: cm

G.W./N.W.: 18.5/17.5KGS
