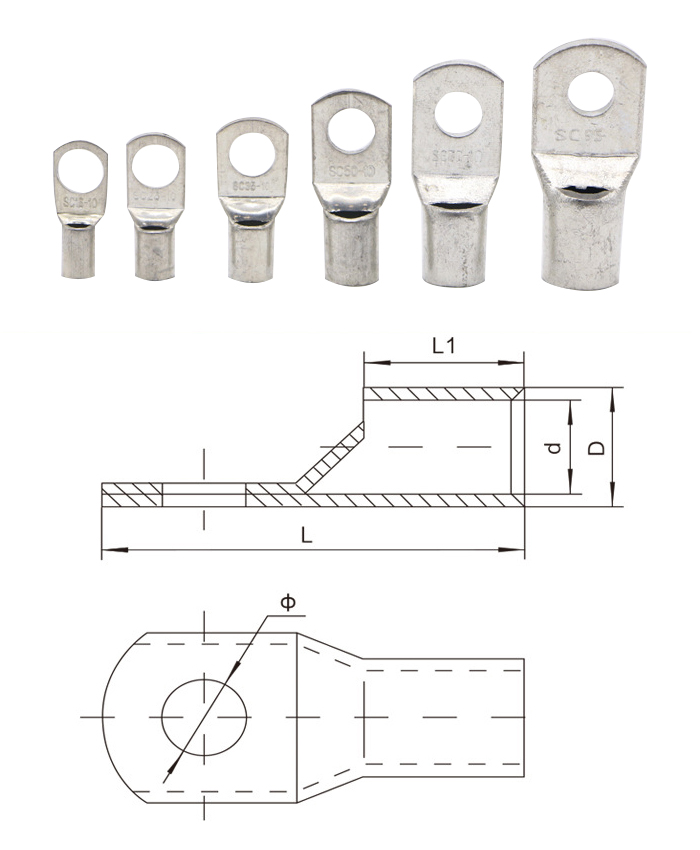

| Type | Dimensions(mm) | Model | ||||
| Dia | D | d | L | L1 | ||
| DTGA-10 | 6.2 | 6.8 | 1.8 | 25.5 | 10.1 | SC-10 |
| DTGA-16 | 8.2 | 7.5 | 6.5 | 30.5 | 12 | SC-16 |
| DTGA-25 | 8.2 | 9 | 7 | 34 | 14 | SC-25 |
| DTGA-35 | 10.5 | 10.5 | 8.2 | 38 | 14 | SC-35 |
| DTGA-50 | 10.5 | 12.5 | 9.8 | 45 | 18 | SC-50 |
| DTGA-70 | 12.5 | 14.5 | 11.5 | 50 | 18.6 | SC-70 |
| DTGA-95 | 12.5 | 17.5 | 13.8 | 55.5 | 23.5 | SC-95 |
| DTGA-120 | 12.5 | 19.5 | 15.5 | 63 | 24 | SC-120 |
| DTGA-150 | 16.5 | 20.5 | 16.5 | 71 | 26 | SC-150 |
| DTGA-185 | 16.5 | 23.5 | 18.8 | 78 | 33 | SC-185 |
| DTGA-240 | 16.5 | 26.5 | 21 | 92 | 37 | SC-240 |
| DTGA-300 | 16.5 | 30 | 24 | 102 | 39.5 | SC-300 |
