Metal Tension Clamp

  • Metal Tension Clamp
  • Metal Tension Clamp
  • Metal Tension Clamp

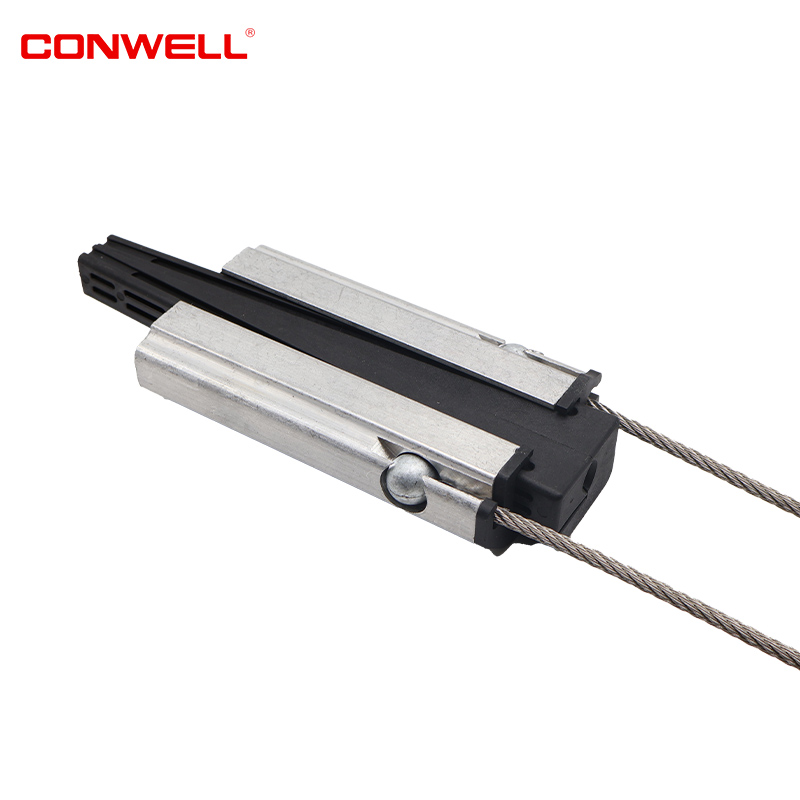

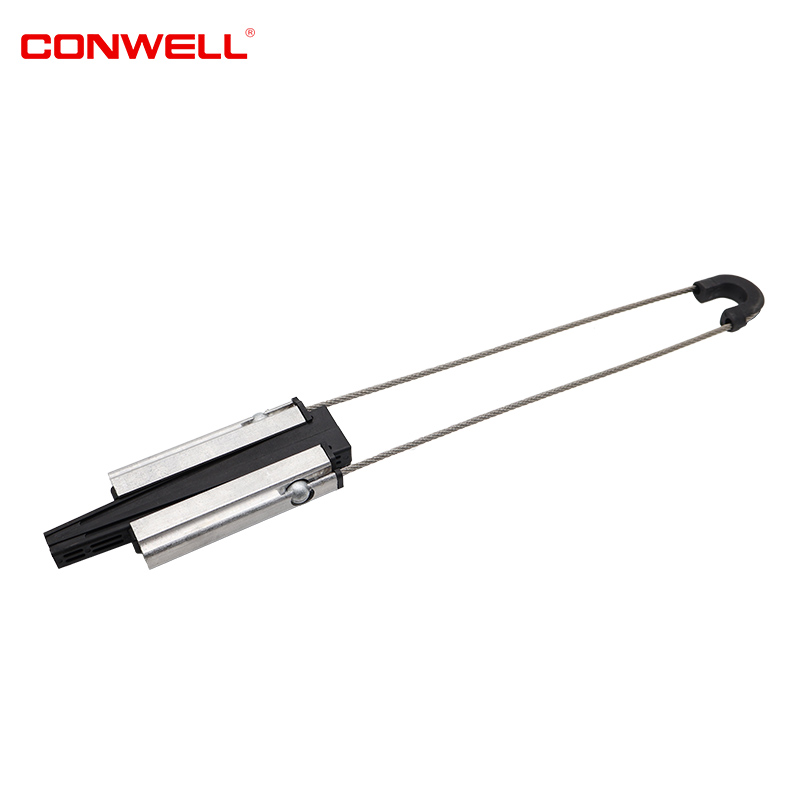

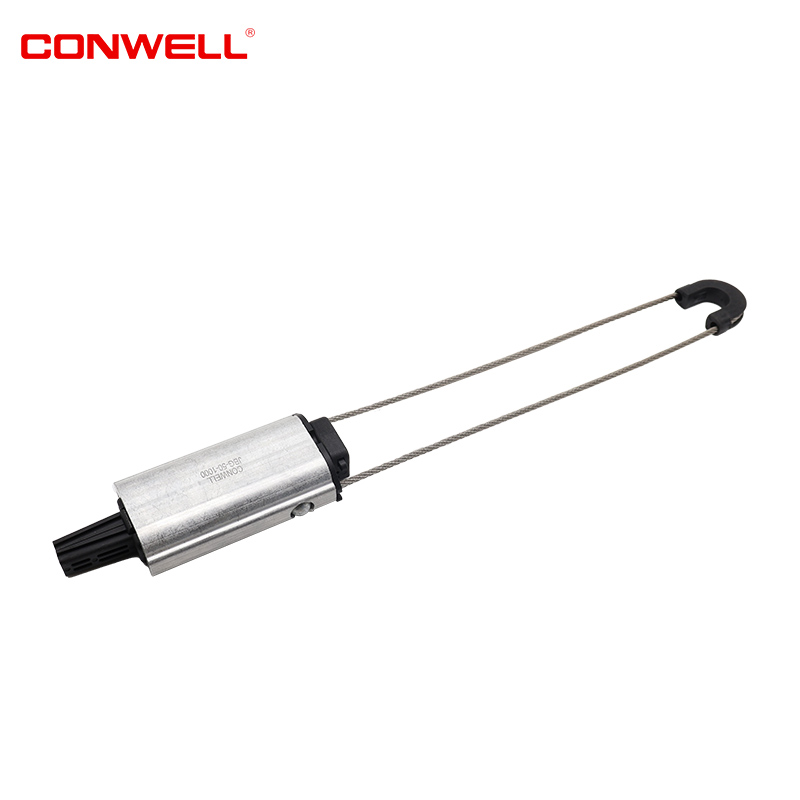

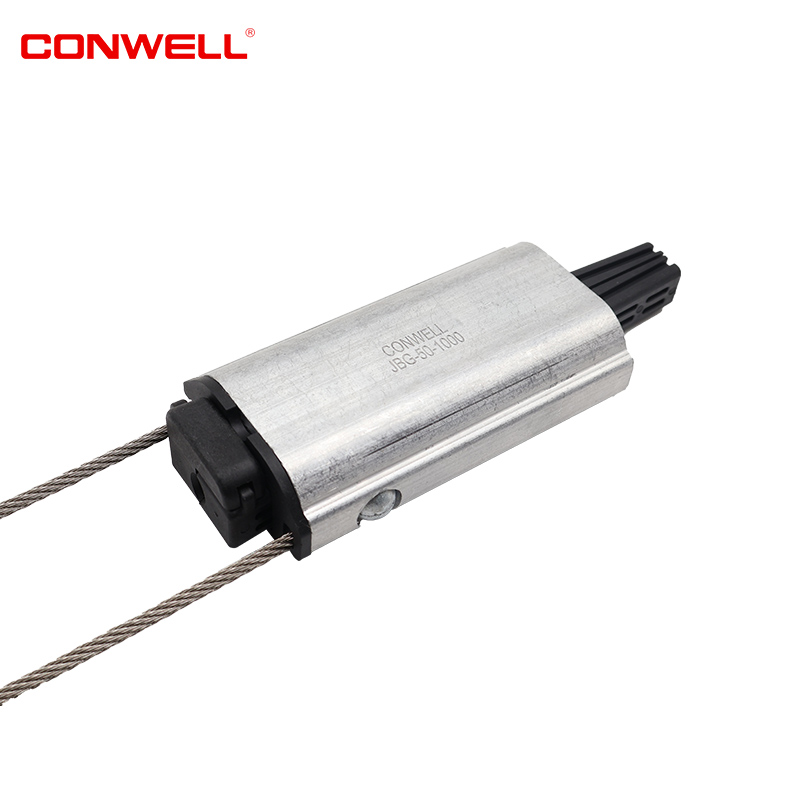

Metal Tension Clamp

Code: PAL90-1500
Cable Size:35-70mm2
The PAL Tension Clamp is used to anchor and tighten LV-ABC lines with insulated neutral messenger.

Description:For tension of LV ABC cables in an insulated messenger wire system (IMWS). Suitable for every climatic conditions.

Benefits: > Easy to install

Technical Specification

Dimension

Weight:

360g

Cable Size:

50-95mm²

Mechanical

Breaking Load

15kN

Specification

Use:

For dead-ending of cables with round shape.

Installation

Wedges are opened and messenger is installed between wedges. Then wedges are pushed back to tighten them on messenger. When needed, bail can be opened by moving one of end pieces about 10 cm out of the clamp. After installing the bail through bracket must both aluminium pieces on the bail be assembled back inside the groove.

Standard

NFC 33-042; EN 50-483

Inner Package: 1pieces in inner bag

PCS/CTN: 50pcs

Carton Size: 45.5*36*21cm

G.W./N.W.: 19/18KGS

Tension clamp for anchoring insulated messenger wire system.
