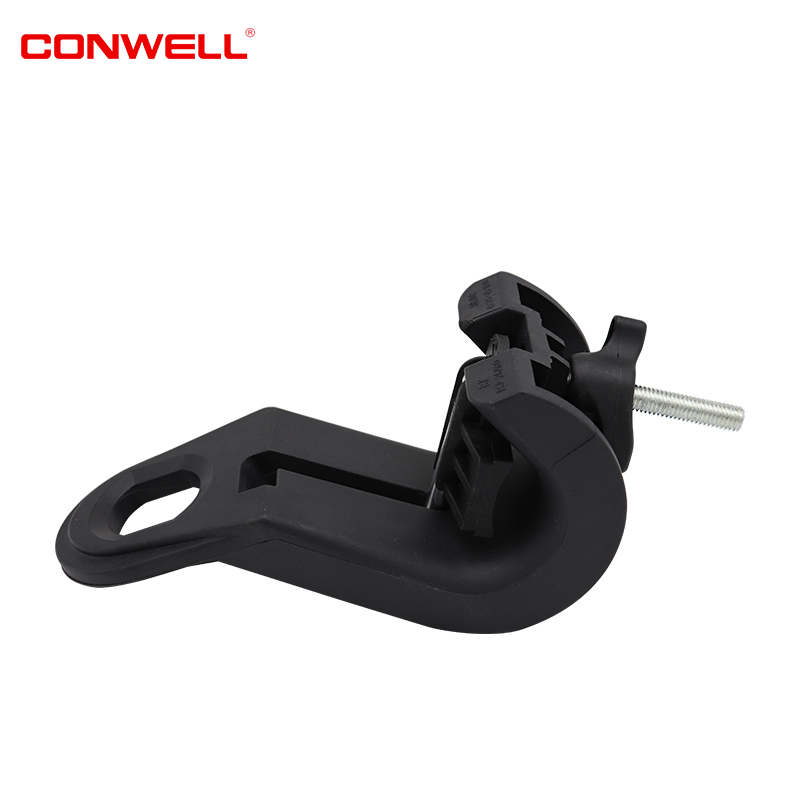

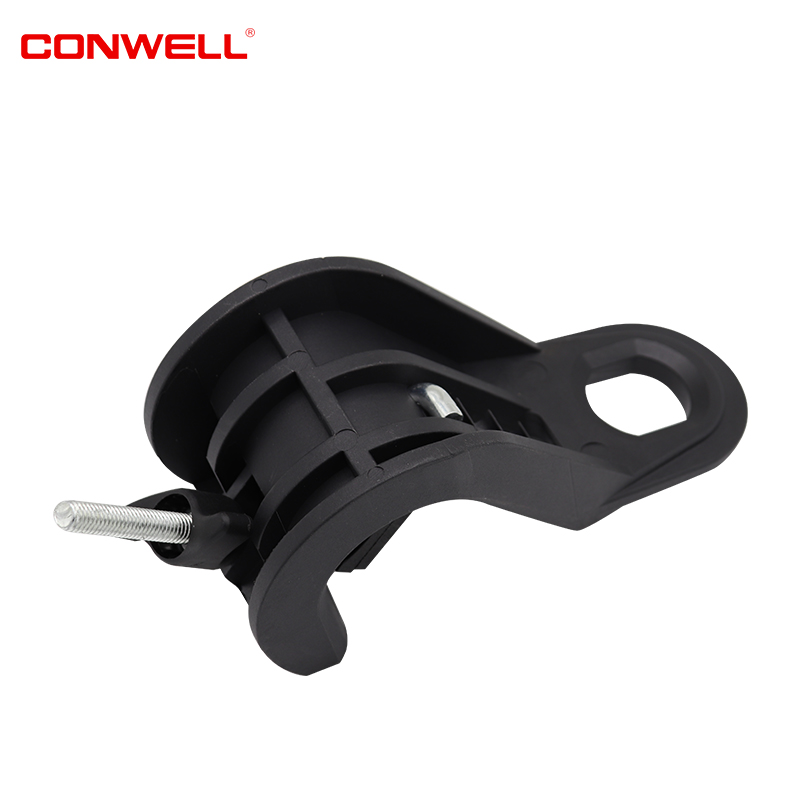

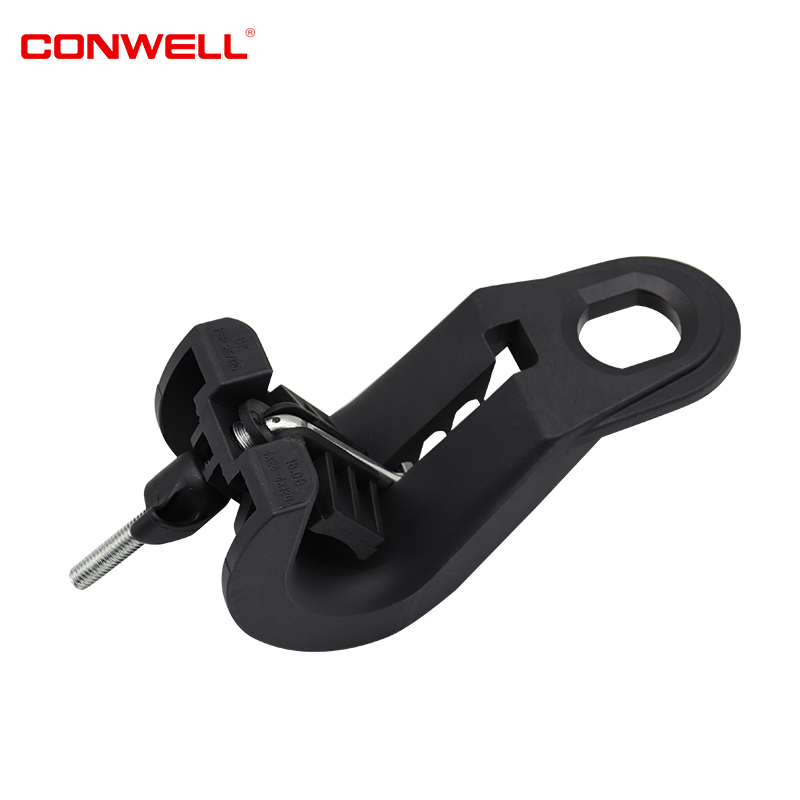

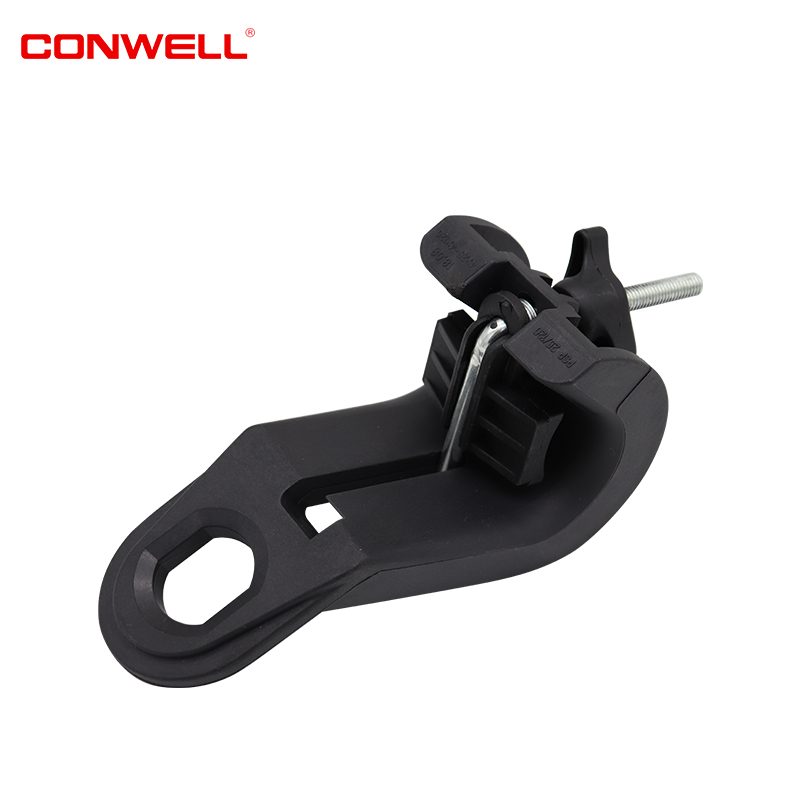

Model: PS25/120
Cable Size: 4x25-120mm²
The PS25/120 suspension clamp are used to hang LV-ABC cables
on poles with the insulated neutral messenger.
Standard: EN50483-3, NFC 33-040
Description:For suspension clamp of LV ABC cables in an insulated messenger wire system (IMWS) with standard hook installation. Easy to install without tools. The messenger is placed to the groove and locked with the locking part. Clamp equipped with wear protection plate.
Technical Specification
Dimensions
Cable Size:4x25-120mm²
Mechanical
Breaking Load:10KN
Specification
Construction:UV resistant plastic
Installation: Messenger wire is installed into the groove and locked with the locking part.
Tools required: No tools required
Standard:NFC 33-042; EN 50-483
