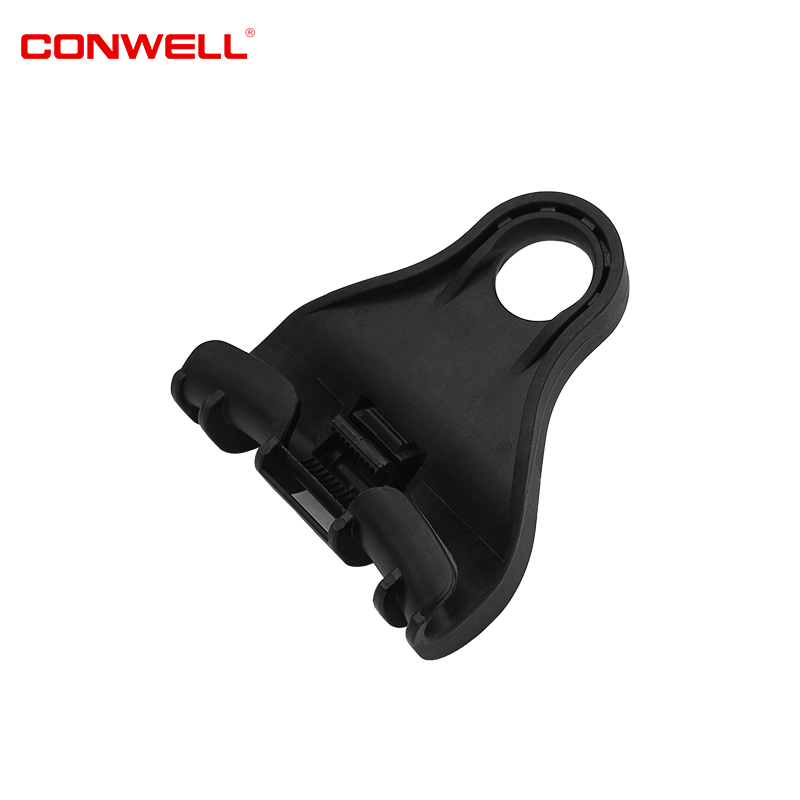

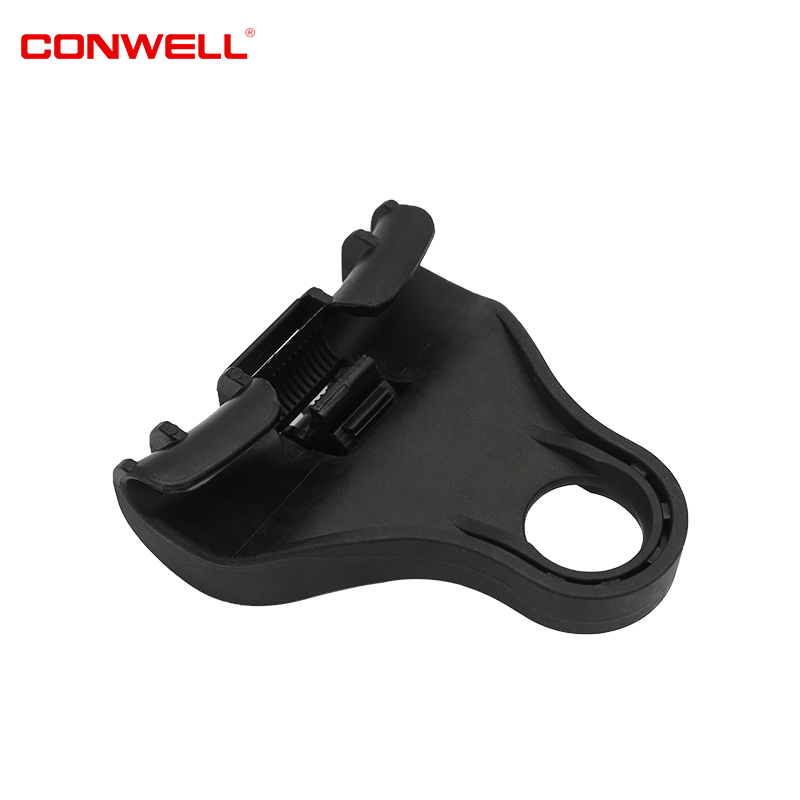

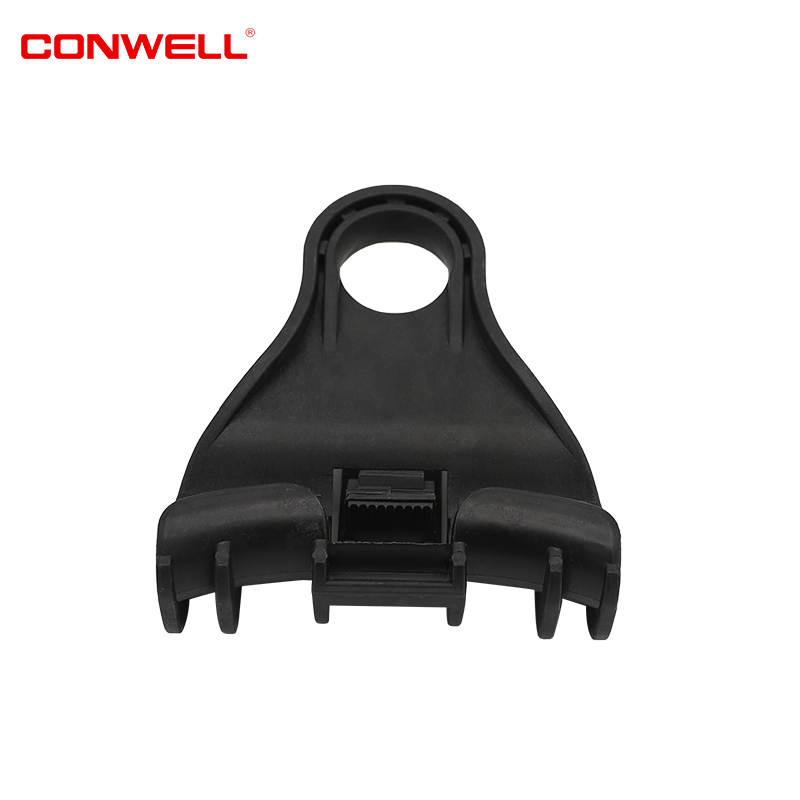

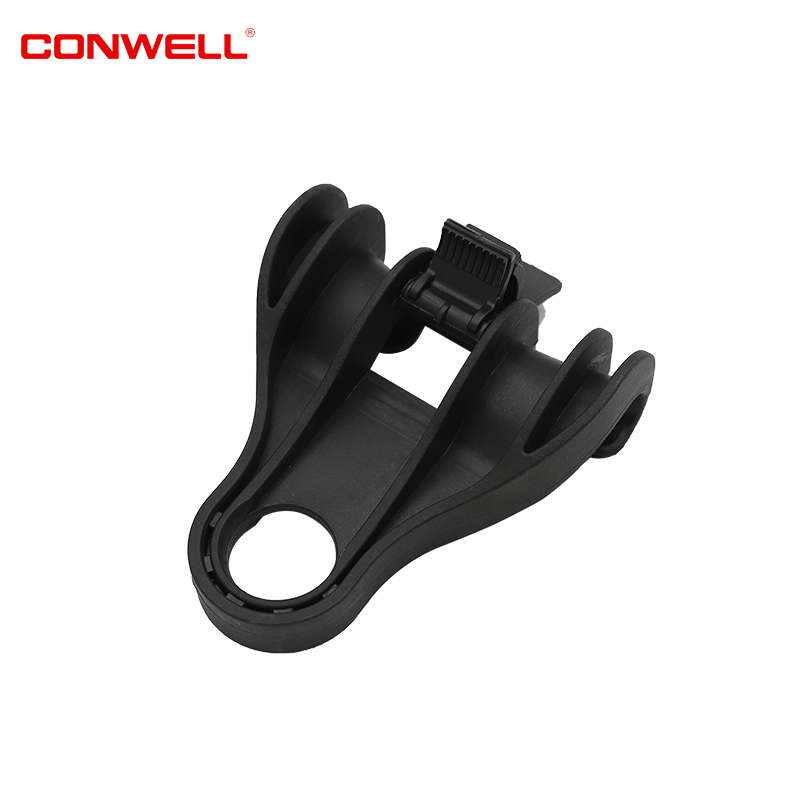

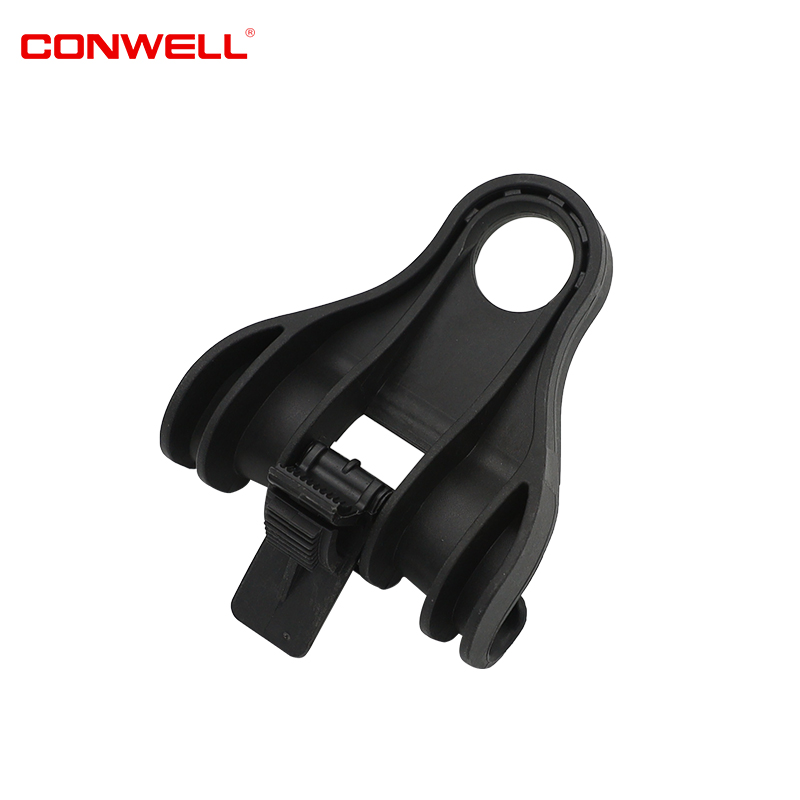

Suspension Clamp

Suspension Clamp

Code: 1.1C
Name: Suspension Clamp
25-95mm²

Description:For sus pensioning of LV ABC cables in an insulated messenger wire system (IMWS) with standard hook installation. Easy to install without tools. The messenger is placed to the groove and locked with the locking part. Clamp equipped with wear protection plate.

Technical Specification

Dimensions

Weight:104g

Cable Size:16-95mm²

Mechanical

Breaking Load:11KN

Specification

Construction:UV resistant plastic

Installation: Messenger wire is installed into the groove and locked with the locking part.

Tools required: No tools required

Standard:NFC 33-042; EN 50-483

Inner Package: 10pieces in inner bag

PCS/CTN: 80pcs

Carton Size:45.5*36*21 cm

G.W./N.W.: 11/10KGS
