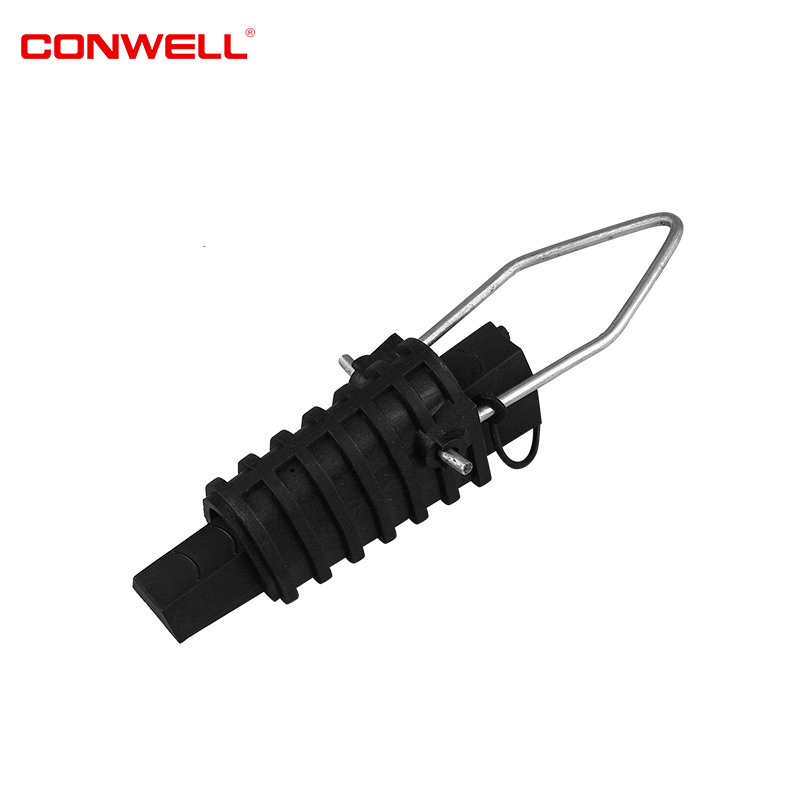

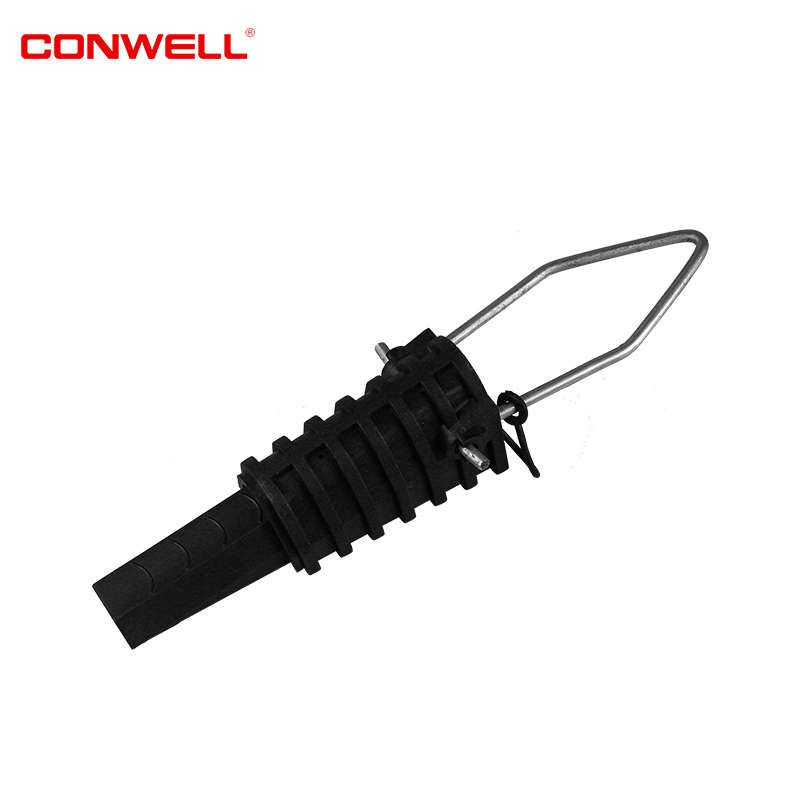

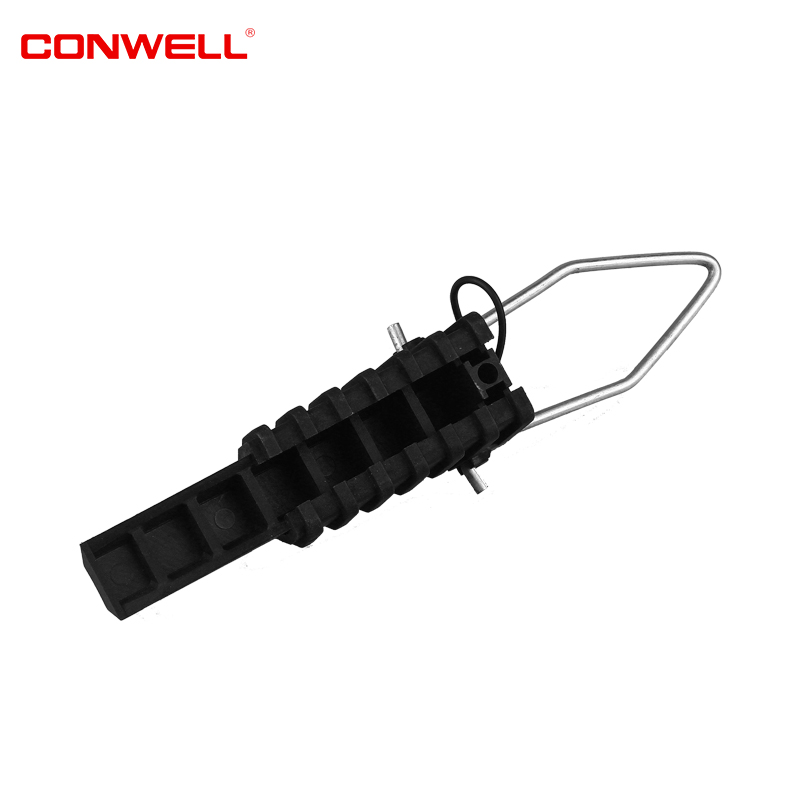

Description:Used for the tension of cables size 10-70mm2 with round shape.
Light weight, no loose parts. The clamp is easy to install, without cutting the cable.
The body is made of weather and UV-radiation resistant thermoplastic and the bail of hot-dip galvanized steel.
Technical Specification
|
Dimension |
||
|
Weight: |
108g |
|
|
Cable Size: |
10-70 mm² |
|
|
Mechanical |
||
|
Breaking Load |
3kN |
|
|
Specification |
||
|
Use: |
For dead-ending of cables with round shape. |
|
|
Construction |
Component |
Material |
|
Body and Wedge |
Weather and UV-radiation resistant thermoplastic |
|
|
Bail |
Hot-dip galvanized steel |
|
|
Installation |
The clamp is opened and the messenger wire is inserted between the wedge and the body. The clamp is then closed and strained. |
|
|
Standard |
NFC 33-042; EN 50-483 |
|
