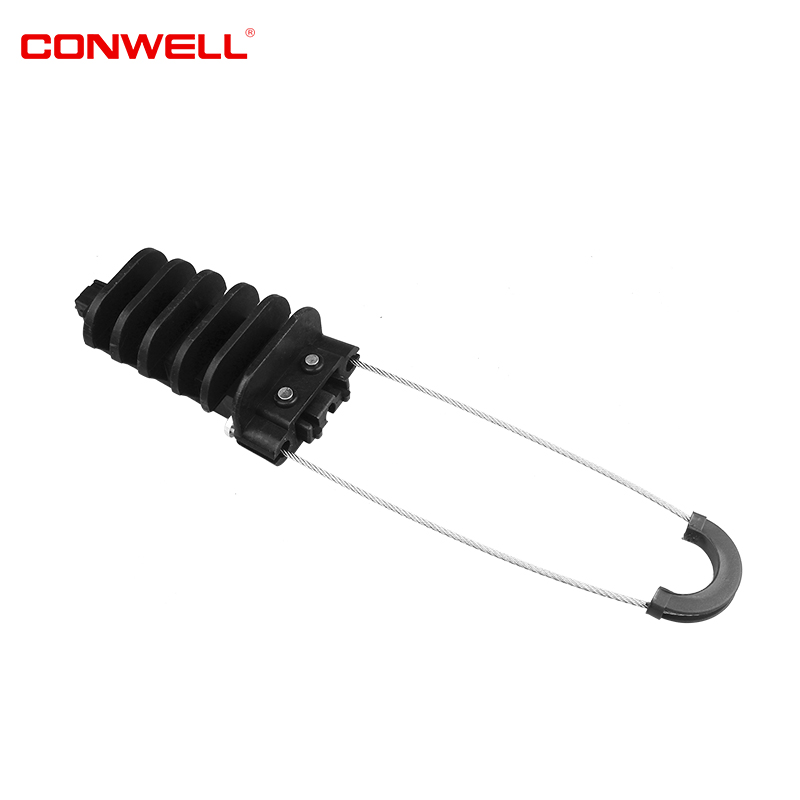

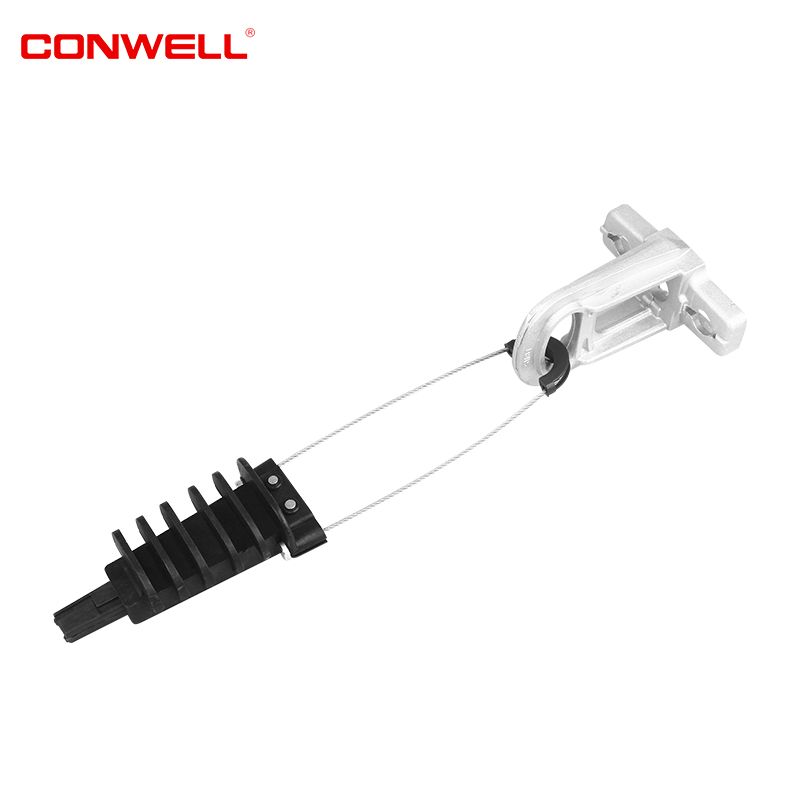

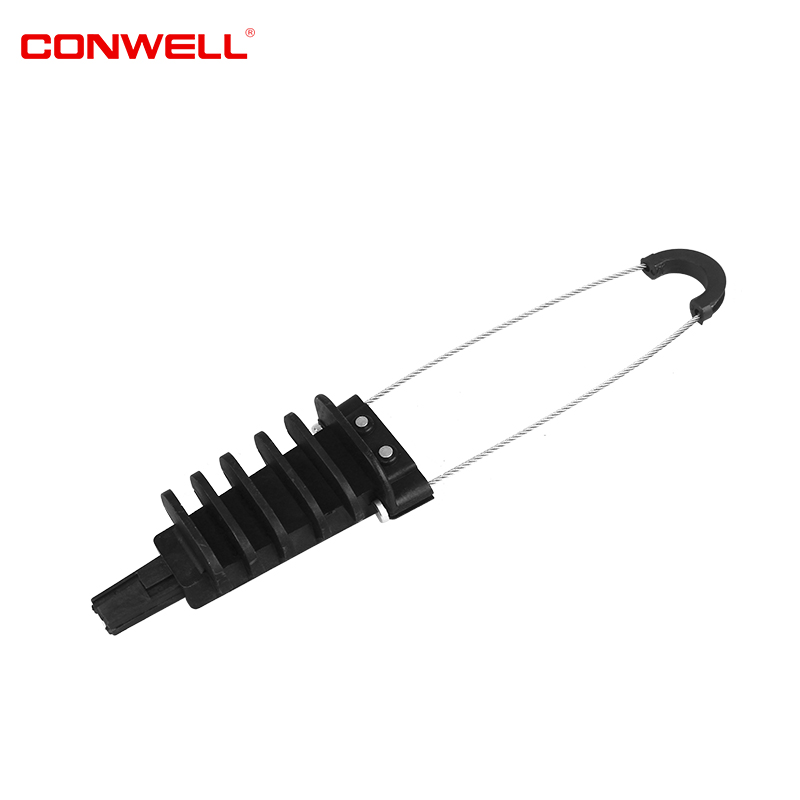

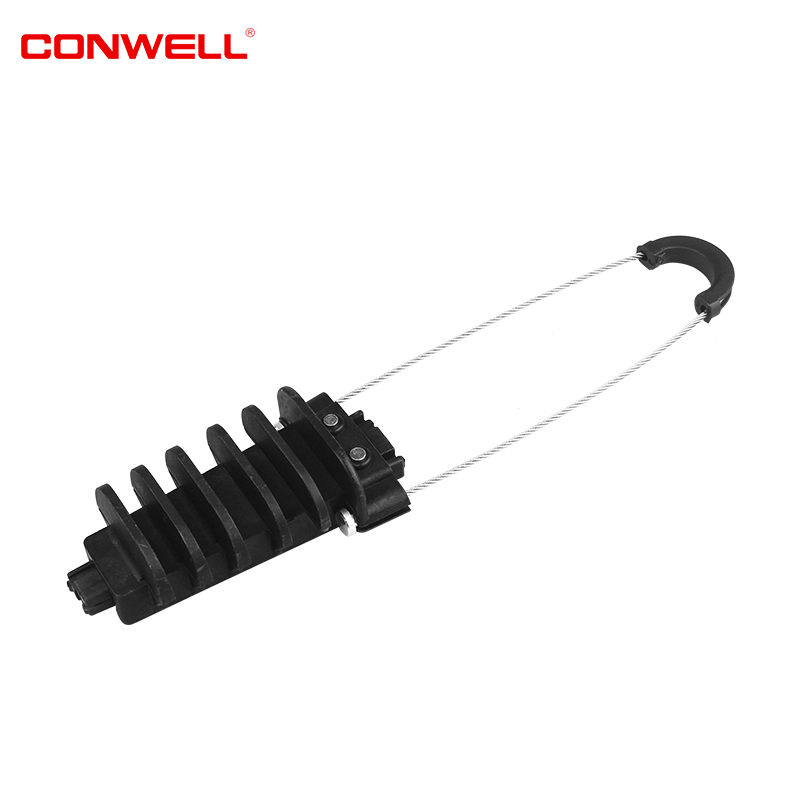

--Special designed clip is used to prevent the bail sipping from the body.
--Standard:NFC33-042
Technical Specification
|
Dimension |
||
|
Weight: |
159g |
|
|
Cable Size: |
6-25 mm² |
|
|
Mechanical |
||
|
Breaking Load |
3.5kN |
|
|
Specification |
||
|
Use: |
For dead-ending of cables with round shape. |
|
|
Construction |
Material |
|
|
Body and Wedge |
Weather and UV-radiation resistant thermoplastic |
|
|
Bail |
Stainless Steel 201 |
|
|
Installation |
The clamp is opened and the messenger wire is inserted between the wedge and the body. The clamp is then closed and strained. |
|
|
Standard |
NFC 33-042; EN 50-483 |
|
Normal Package
Inner Package: 10pieces in inner bag
PCS/CTN: 80pcs
Carton Size: 45.5*36*21cm
G.W./N.W.: 14/13KGS
Specific packaging can be made to order.
