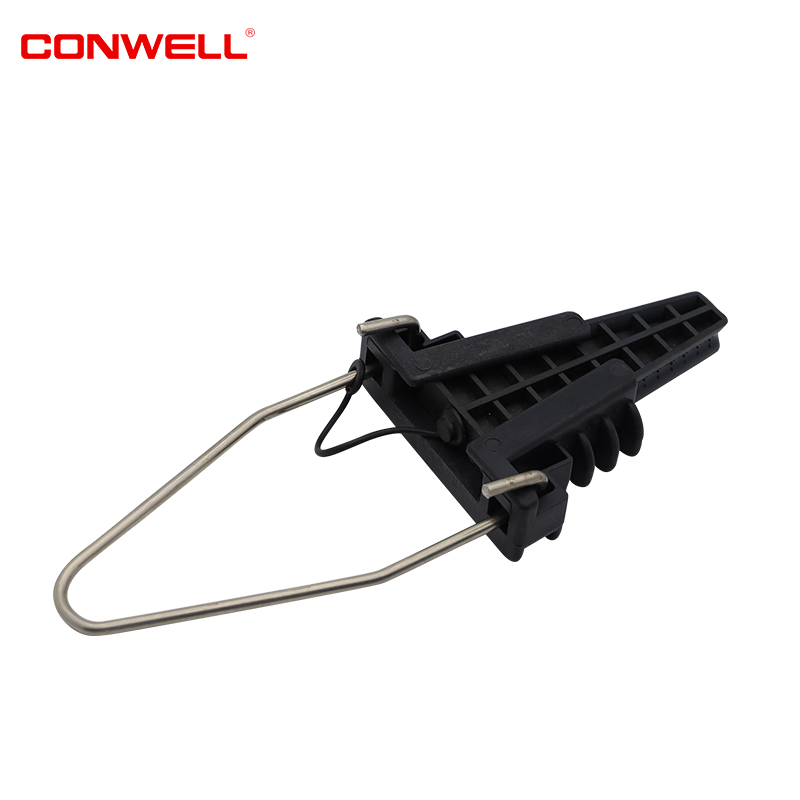

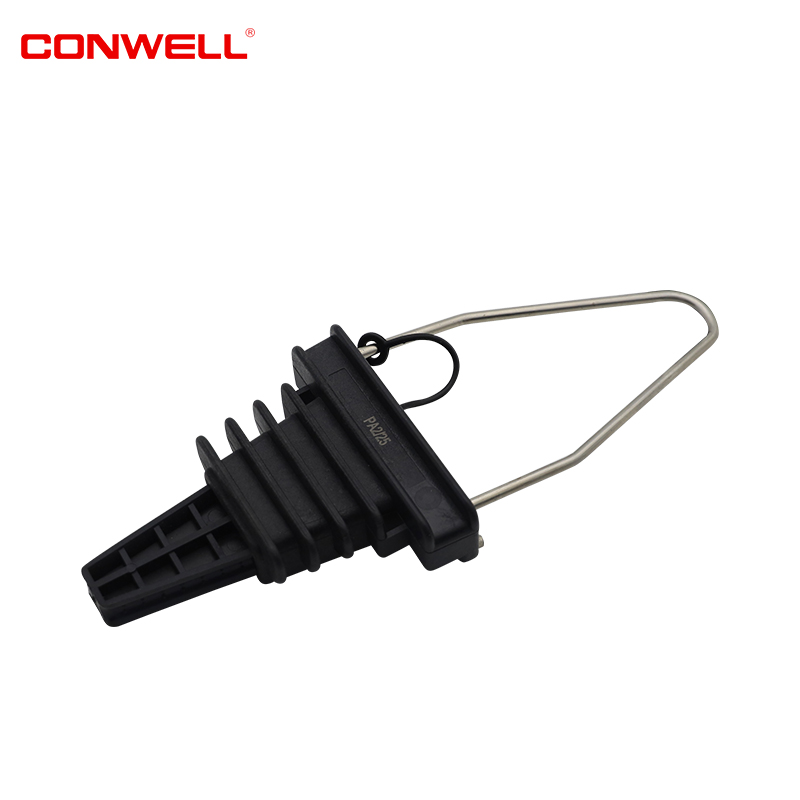

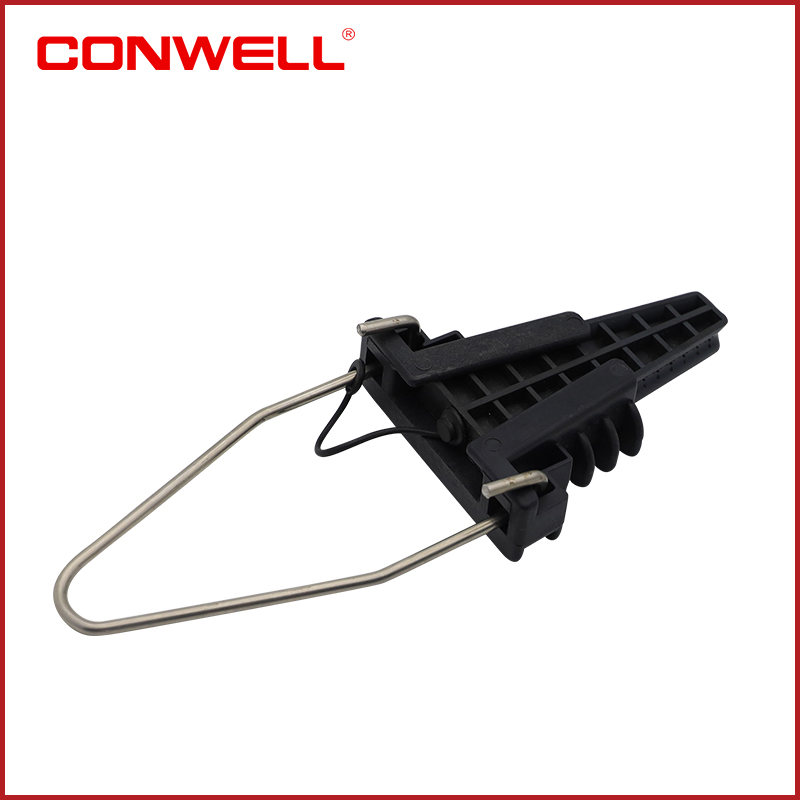

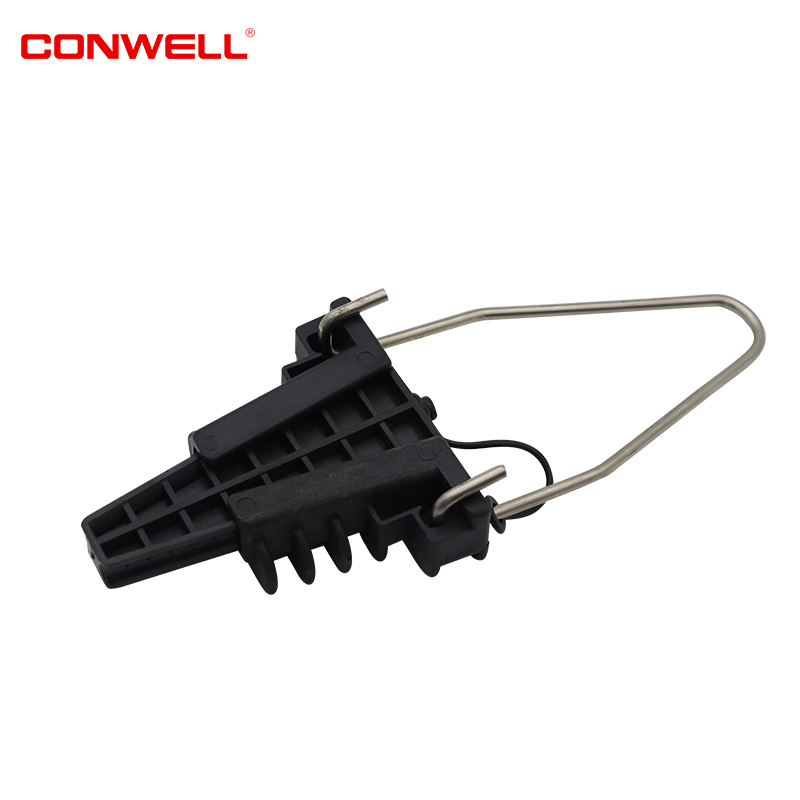

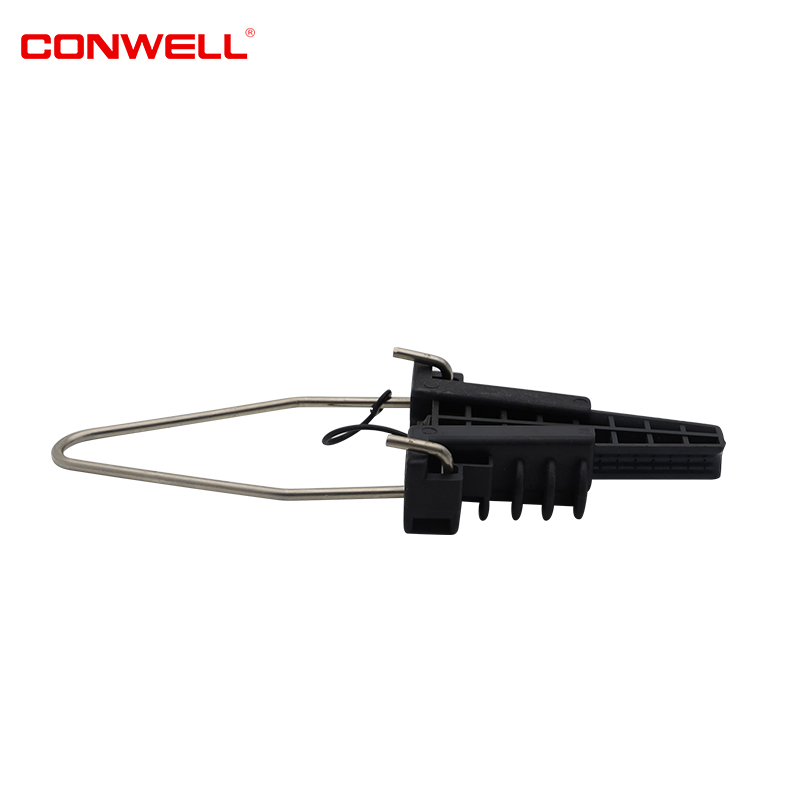

Code: PA2/25
Cable Size: 2*10-35mm²
The tension clamp is designed for service line with 2 conductors.
- Clamp body is made of high mechanical strength and
weather resistant insulation material.
- Standard: NFC33-042
Description
The tension clamp is designed for service line with 2 conductors.
- Clamp body is made of high mechanical strength and weather resistant insulation material.
- Standard: NFC33-042
Technical Specification
|
Dimension |
||
|
Weight: |
109g |
|
|
Cable Size: |
2*10-35mm² |
|
|
Mechanical |
||
|
Breaking Load |
2.5kN |
|
|
Specification |
||
|
Use: |
For dead-ending of cables with round shape. |
|
|
Construction |
Component |
Material |
|
Body and Wedge |
Weather and UV-radiation resistant thermoplastic |
|
|
Bail |
Hot-dip galvanized steel |
|
|
Installation |
The clamp is opened and the messenger wire is inserted between the wedge and the body. The clamp is then closed and strained. |
|
|
Standard |
NFC 33-042; EN 50-483 |
|
Normal Package
Inner Package: 2pieces in inner bag
PCS/CTN: 100pcs
Carton Size: 538*37*27cm
G.W./N.W.: 12/11KGS
Specific packaging can be made to order.
