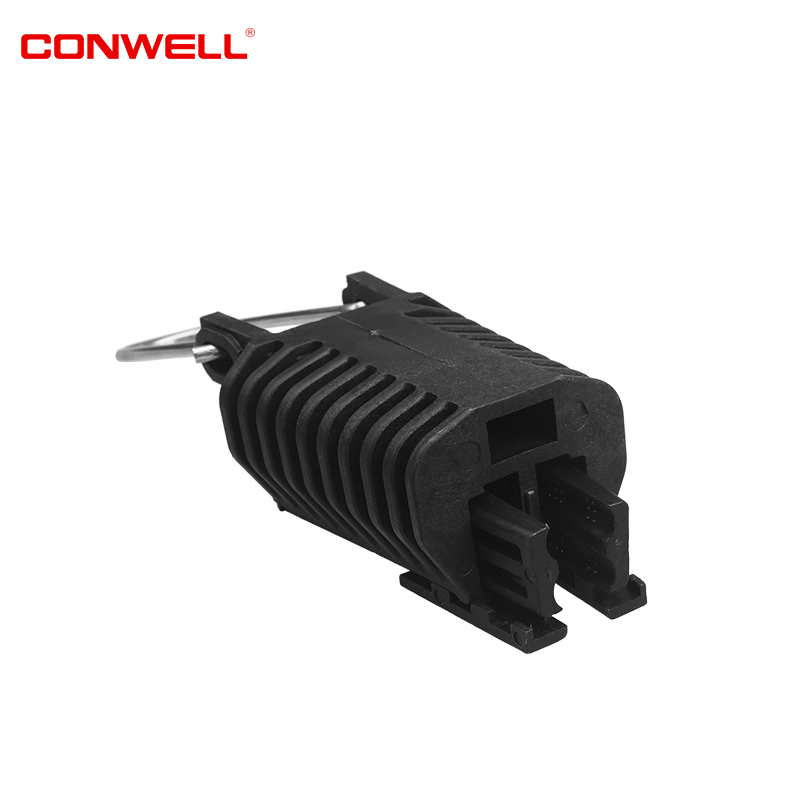

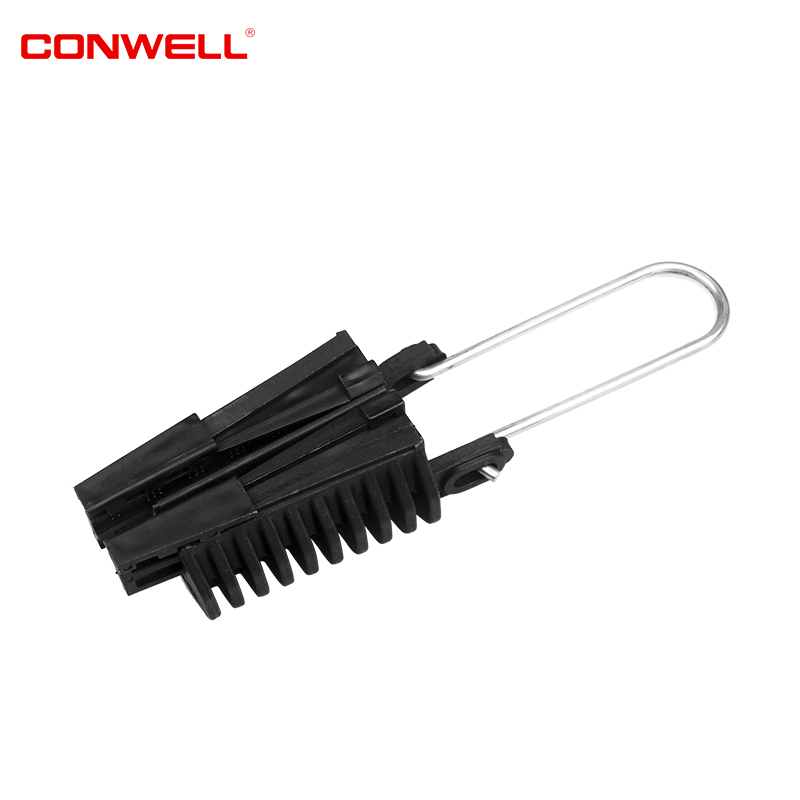

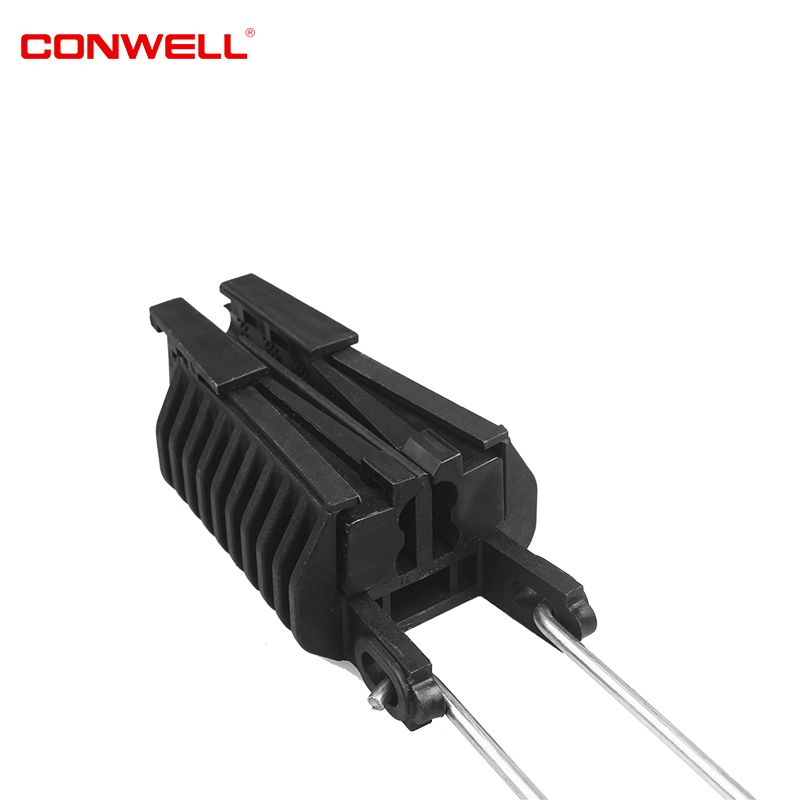

Plastic Dead end Clamp

Dimension

Weight:

142g

Cable Size:

4x16-35 mm²

Mechanical

Breaking Load

2.5kN

Specification

Use:

For dead-ending of cables with round shape.

Construction

Component

Material

Body and Wedge

Weather and UV-radiation resistant thermoplastic

Bail

Hot-dip galvanized steel

Installation

The clamp is opened and the messenger wire is inserted between the wedge and the body. The clamp is then closed and strained.

Standard

NFC 33-042; EN 50-483
