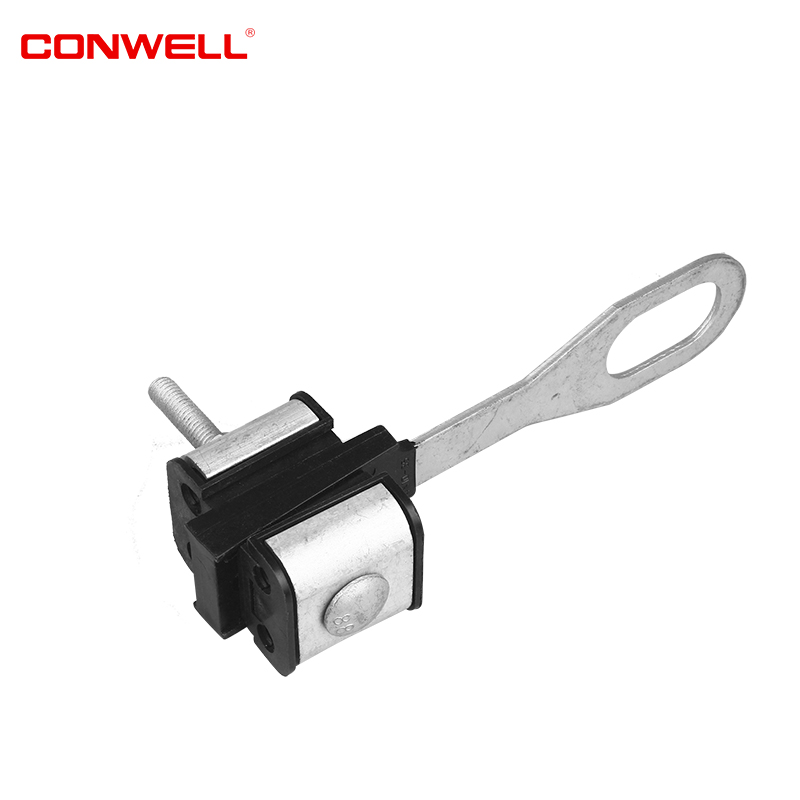

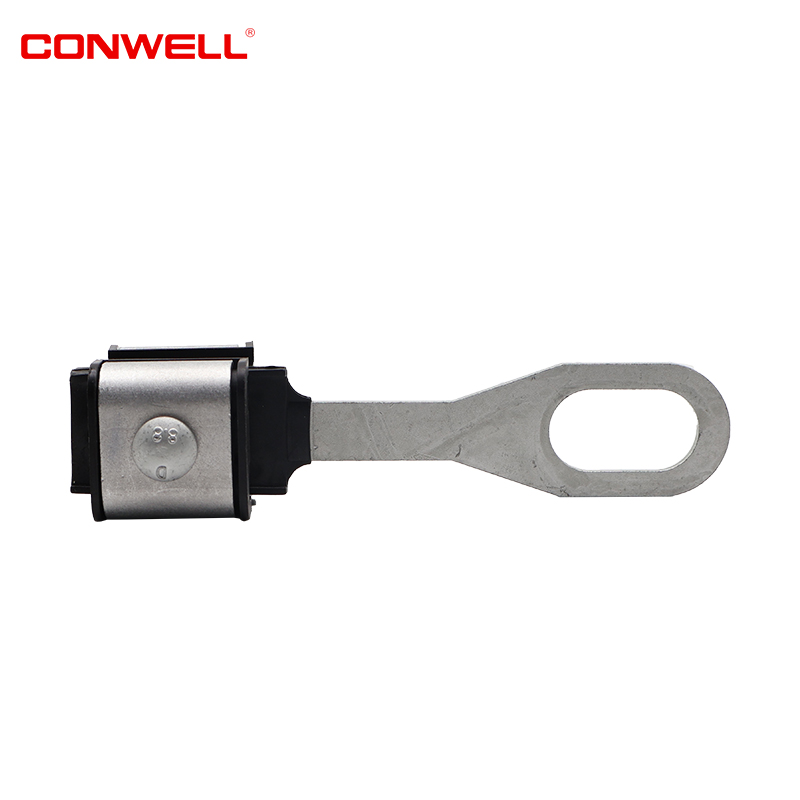

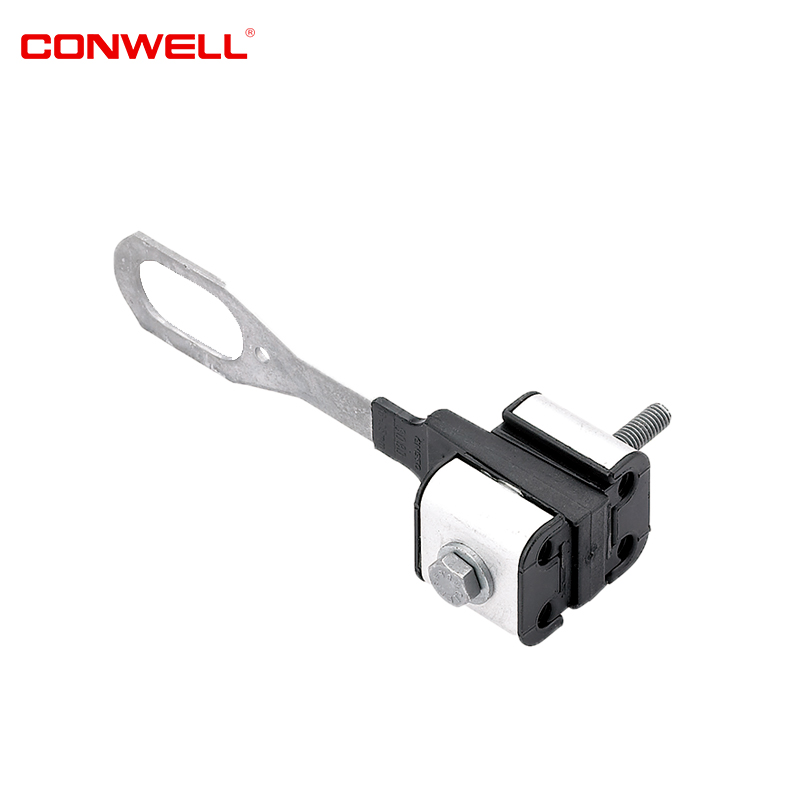

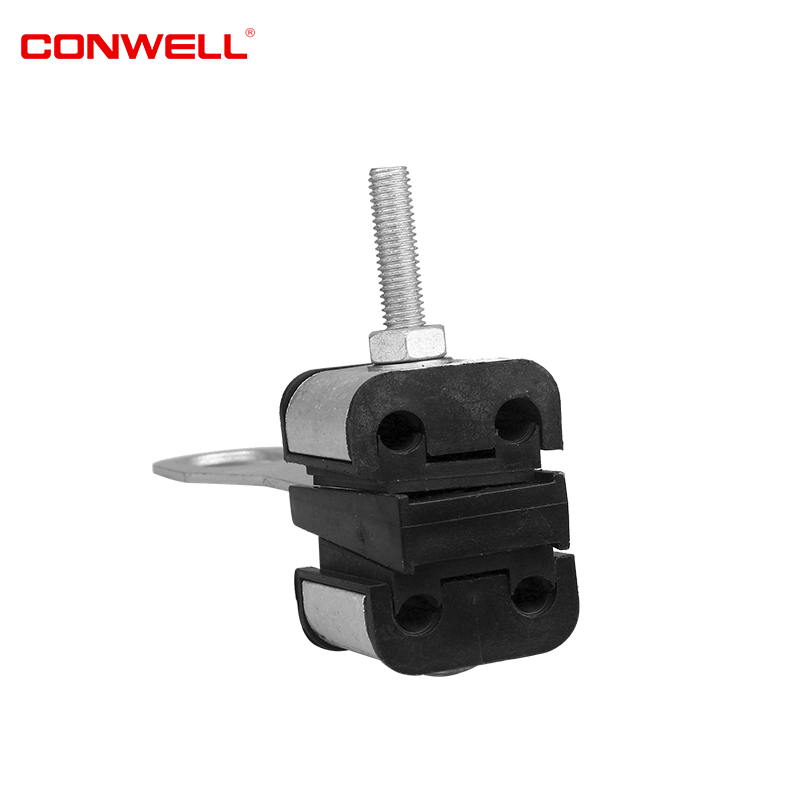

Description:Tension clamp for the anchoring of 4-core overhead cables to poles or walls by standard hooks. Tension clamp is equipped with a spring and shear head screw to make the installation easier.
Technical Specification
|
Dimension |
||
|
Weight: |
202g |
|
|
Cable Size: |
4*16-35mm² |
|
|
Mechanical |
||
|
Breaking Load |
5kN |
|
|
Specification |
||
|
Use: |
Used for the termination of 4 core overhead cable to poles or walls by means of standard hooks. |
|
|
Construction |
Component |
Material |
|
Body |
Corrosion proof aluminum alloy |
|
|
Bolt,Washer |
Hot-dip galvanized steel |
|
|
Plastic Parts |
Frost, heat and UV-radiation resistance plastic |
|
|
Installation |
Open the screw and put conductors into grooves.Tighten the shear head nut. |
|
|
Standard |
NFC 33-042; EN 50-483 |
|
