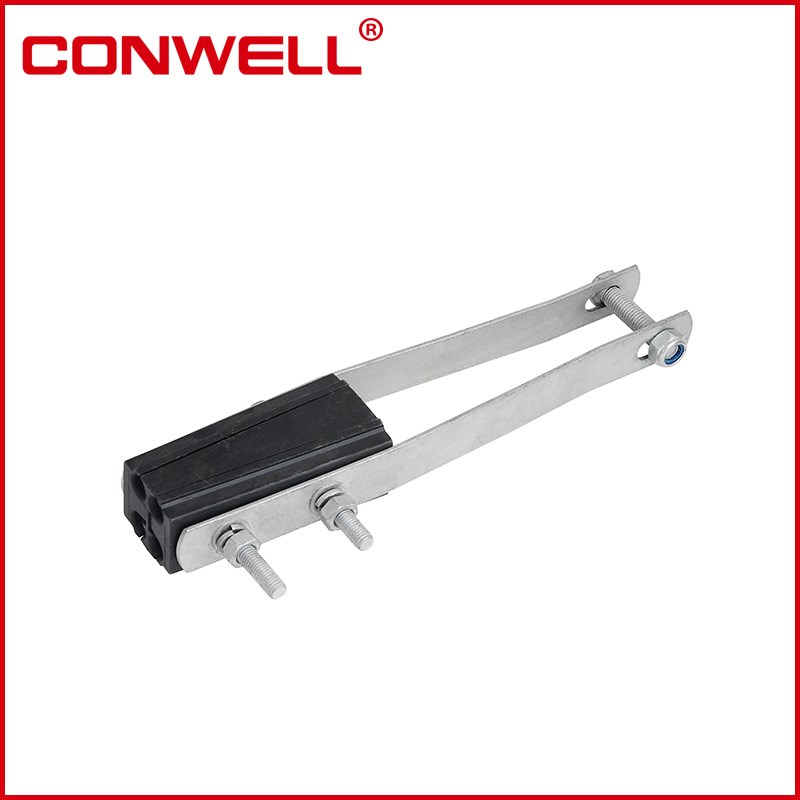

Metal Tension Clamp

Metal Tension Clamp

Code: NES-B1
Cable Size: 4*35-70mm²

Description:Tension clamp for the termination of 4 core overhead cables.

Technical Specification

Dimension

Weight:

860g

Cable Size:

4*35-70mm²

Mechanical

Breaking Load

21kN

Specification

Use:

For dead-ending of cables with round shape.

Installation

Open the clamp and insert conductors between the wedges. Springs keep the clamp in an open position during the installation. Nuts must be tightened up uniformly until proper torque is reached. After reaching a proper torque re tightening is not allowed.

Standard

EN 50-483

Inner Package: 2pieces in inner bag

PCS/CTN: 30pcs

Carton Size: 45.5*36*21cm

G.W./N.W.: 27/26KGS
